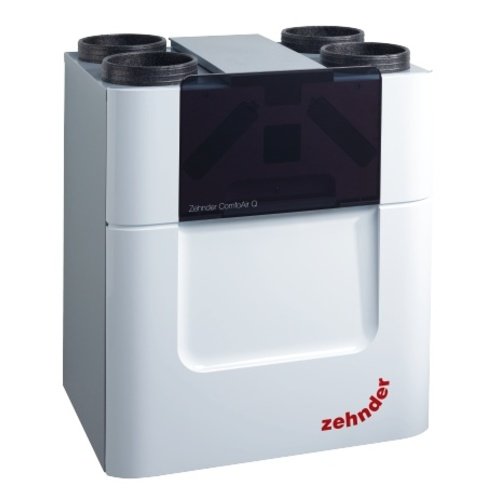

Zehnder ComfoAir Q600 ST Enthalpy with Integrated Display, 471502014

ZE Ventilation unit ComfoAir Q600 ST
Enthalpy with integrated display

The Zehnder ComfoAir Q600 ST Enthalpy
is a central, compact
ventilation unit with heat recovery
and integrated summer bypass. This
ventilation unit is ideally suited
for new buildings as well as for
renovation projects.
The housing, made of galvanized and painted
sheet steel, is
sound and thermally insulated.
Economical DC fans ensure
economical operation and
thus enable high
electrical efficiency. Supply and
extract air fans can be controlled
separately and can be
precisely set to a percentage by entering
the balanced air volume.
The core of the ComfoAir Q600 ST Enthalpy
is the plastic cross-counterflow heat exchanger
with a heat recovery efficiency of more than
90%. Operation is via the
integrated control unit. Optionally,
operation can be performed via a
wired control unit
(ComfoSense C or ComfoSwitch C), which
is connected to the ventilation unit
with an on-site cable
(JYSTY 2x2x0.6). Optionally, operation
can also be performed via the interfaces
ComfoConnect LAN C or Comfoconnect
KNX C.
All operating statuses as well as
error messages are visible on the display.
The ComfoAir Q600 ST is supplied ready to plug in.
The filters can be easily changed by the user
from the front, without opening the unit.
The ComfoAir Q600 ST Enthalpy can be
mounted either wall-mounted or floor-standing
with an optionally available plinth.
Connection is via 4
DN 180 connection spigots at the top.
Automatic frost protection control
Filter change indicator
G4 appliance filter (optional filter class
F7 available)
Automatic and
temperature-controlled summer bypass
Error history of the last three
error messages
Supply and extract air fans can be switched on
individually
Comfort temperature control
Chimney sweep control
Heat exchanger: Plastic
Fans: EC
DC fans radial
suction side
Filter: Exhaust air: G4, Outside air: G4
Condensate connection: DN 32
Air duct connections: 4x DN180 upwards
Mains connection: 230V, 50 Hz
Operating limits: 7C to 40C in the
installation room
Sound power (min/max):
Exhaust air: 43.0 dB(A) / 60 dB(A)
Supply air: 54.0 dB(A) / 75 dB(A)
Heat recovery efficiency: up to 92%
Volume flow:
maximum 600 m3/h at 200 Pa external
minimum 60 m3/h at 15 Pa external
Power consumption:
maximum 345 Watt
Electrical efficiency: 0.26Wh/m3 at 420m3/h
Dimensions:
Height: with spigots 850 mm
Width: 725 mm, Depth: 570 mm
Type:
ZE Ventilation unit ComfoAir Q600 ST
Enthalpy with integrated display
Manufacturer: Zehnder Comfosystems
Article number: 471502014
