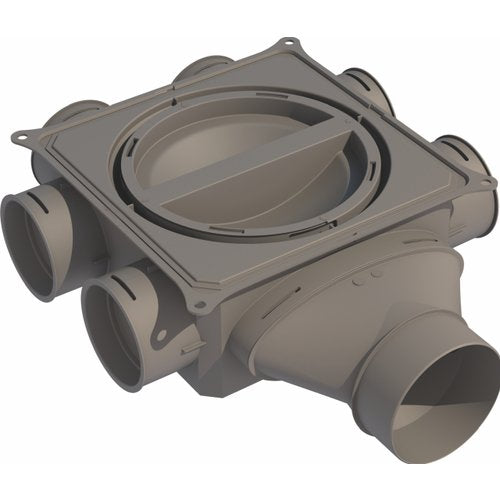

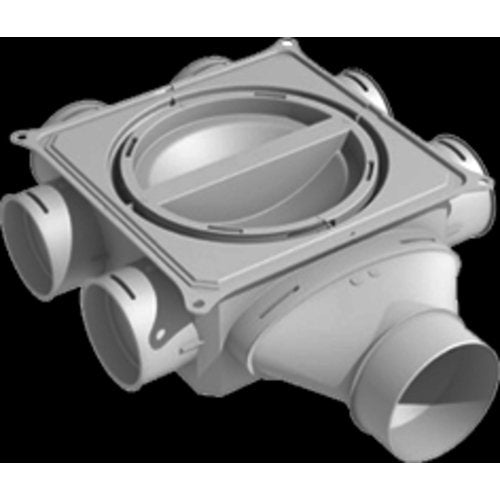

Wolf Air Distributor Flat mini 6-75 for CWL

Plastic air distributor and collector for connecting 6x DN75 round ducts. Can be converted to DN 63, DN 90 round duct system, 50x100 or 50x140 flat duct with adapters (accessories). Mixed occupancy with different duct dimensions also possible.
Suitable for installation in concrete ceilings, under ceilings or on walls.
Can be used as a pass-through version (180°)
6 DN75 spigots with 3 end caps
Integrated ISO pipe connection DN125
1 inspection opening with EPM sealing ring
Features:
+/-2,000 Pa system tightness in conjunction with other components
Tightness class D according to DIN EN 12237 or ATC2 according to EN 16798-3
Fire behaviour class E according to EN 13501-1
Operating temperature -20 - + 60°C
Antistatic and antimicrobial
Food-grade material
All properties independently tested and certified by TÜV Süd or ISEGA

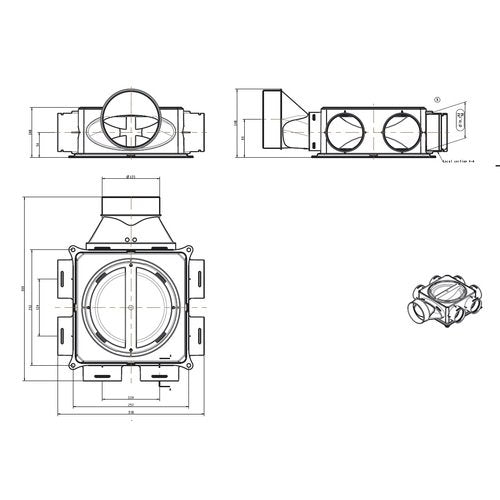

Length: 318 mm
Width: 318 mm
Depth (without appliance connection spigot): 123 mm
Manufacturer: Wolf GmbH
Article number: 2577836
