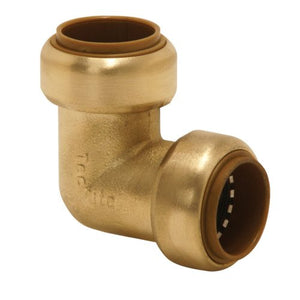

Elbow 22 mm I/I TECTITE # T090

VSH Tectite Copper removable push-fit fittings made of DR brass, material no. CW626 according to DIN EN 12164 or red brass, material no. CC491 according to DIN EN 1982. Tested according to DVGW worksheet W 534, DVGW approval number for drinking water installations: DW-8511BL0274. With factory-inserted EPDM O-ring. Permanently tight push-fit connection, suitable for concealed installation, removable and reusable. Dimensions 12 to 54mm. For connecting copper pipes according to DIN EN 1057 and DVGW worksheet GW 392. Temperature resistance -20 to 90 degrees Celsius, pressure resistance 16 bar at 30 degrees Celsius. Areas of application: drinking water installations according to EN 806 and DIN 1988, service water and rainwater installations, heating installations according to DIN EN 12828, closed cooling circuits, compressed air installations according to DIN ISO 8573-1.
