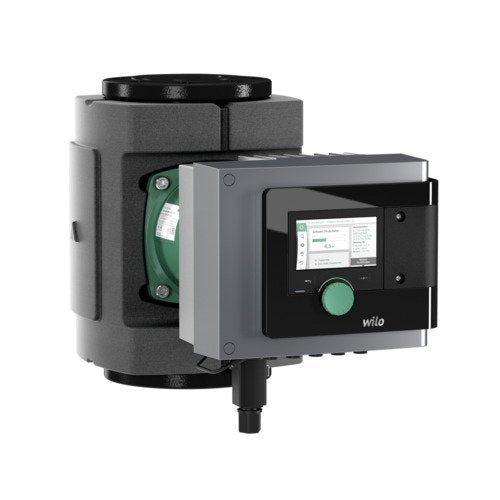

Wilo Wet Rotor Premium Smart Pumps Stratos MAXO 65/0.5-9 PN6/10, DN65, 505W

Premium Smart Pump Wilo-Stratos MAXO high-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for heating water, cold water, and water/glycol mixtures. Energy Efficiency Index (EEI) between ≤ 0.17 and ≤ 0.19, depending on the pump type. Control modes: Permanent, automatic power adjustment to the system requirements without a setpoint specification Wilo-Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control. Constant temperature (T-const.) Constant differential temperature (dT-const.) Demand-driven flow rate optimization of the feeder pump through networking and communication with multiple pumps (Multi-Flow Adaptation). Constant flow rate (Q-const.) Differential pressure control dp-c at a remote point in the pipe network (poor point control) Constant differential pressure (dp-c) Variable differential pressure (dp-v) with the option of nominal operating point input Constant speed (n-const.) User-defined PID control Functions: Heat quantity measurement Cold quantity measurement Automatic pump shutdown upon zero-flow detection (No-Flow Stop) Switching between heating and cooling mode (automatic, external or manual) Adjustable flow rate limitation via QLimit function (Qmin. and Qmax.) Double pump operating modes: Efficiency-optimized addition mode for dp-c and dp-v, main/standby mode Save and restore configured pump settings (3 restore points) Clear text fault/warning message display including troubleshooting recommendations Deaeration function for automatic deaeration of the rotor chamber Automatic night setback Automatic deblocking function and integrated full motor protection Dry-running detection Display: Control mode Setpoint Flow rate Temperature Power consumption Electrical consumption Active influences (e.g., STOP, No-Flow Stop) Design: 2 configurable analog inputs: 0-10V, 2-10V, 0-20mA, 4-20mA and commercial PT1000; power supply with +24 V DC 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, Heating/Cooling, Manual override (building automation decoupled), Operating lock (keypad lock and remote control configuration protection)) 2 configurable signal relays for operating and fault messages Slot for Wilo-CIF modules with interfaces for building automation GA (Optional accessories: CIF modules Modbus RTU, BACnet MS/TP, LON, PLR) Wilo Net as Wilo system bus for communication between Wilo products, e.g., Multi-Flow Adaptation; double pump operation and Wilo-Smart Gateway Integrated temperature sensor Automatic emergency operation in special conditions (pump speed definable), e.g., in case of bus communication or sensor value failure Graphical color display (4.3 inches) with one-button manual control Read out and set operating data and, for example, create a commissioning report via Bluetooth interface (without further accessories) using the Wilo Assistant App Integrated double pump management (double pumps are pre-wired), when using 2 single pumps as a double pump unit, connection via WILO Net Cable break detection for analog signal (in conjunction with 2-10V or 4-20mA) Outdoor installation with weather protection possible according to installation and operating instructions Date and time preset Thermal insulation shell for heating applications 5-year warranty Scope of delivery Pump Optimized Wilo-Connector for all sizes the same 2x cable glands M16 x 1.5 Washers for flange bolts M12 and M16 (for connection nominal widths DN32 to DN65) 2x gaskets for threaded connection Thermal insulation shell Installation and operating instructions compact Optional accessories: ClimaForm cold insulation to prevent condensation CIF module: Modbus RTU, BACnet MS/TP, LON, PLR PT 1000 (B) pipe contact sensor (for domestic hot water) PT 1000 (AA) sensor for installation in immersion sleeve Differential pressure sensor
