Art. no.
10673
Wemefa Drill Console RHE 200 mm
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
In stock
1066 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Drilling Bracket RHE-200 mm
All-purpose drilling bracket
RH All-purpose Drilling Brackets
RHE version for all panel radiators
with and without hanging tabs.
Product features:
-In combination with
VDI accessory kit 526 and wall clearance,
Enables eccentric mounting = 30 mm,
Performance Class 3 according to VDI 6036
-Galvanized metal parts

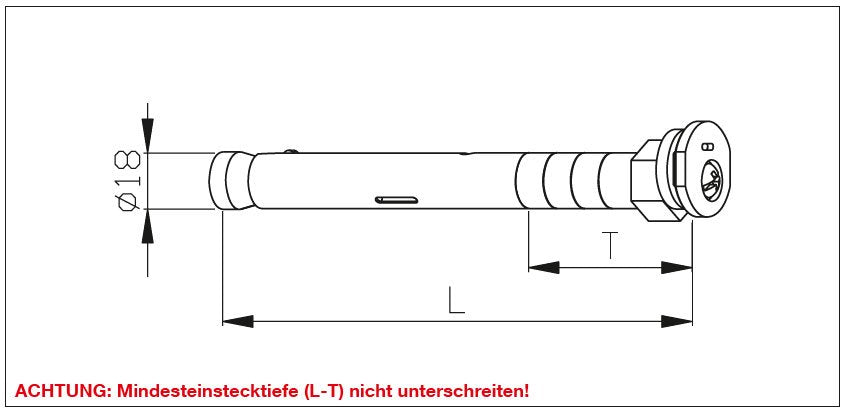

-18 mm core diameter
-Eccentric adjustment range = 8.5mm
Accessories:
-VDI accessory kit, clamping bracket,
spacers and anti-lift device
Dimensions and details can be found in the price list
in the download area.

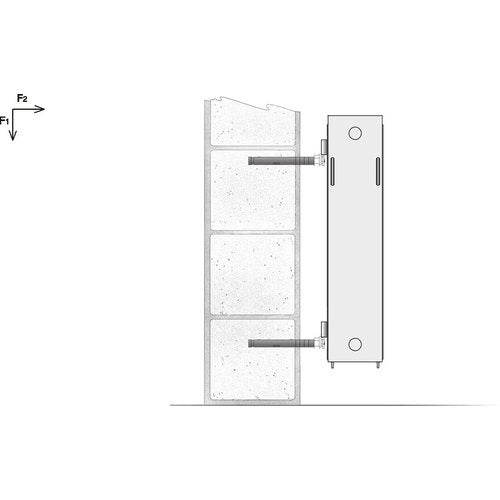

Max. load F1: 500 N
Max. load F2: 500 N
F1+F2 measured at L: 100 mm
Dimension L: 200 mm
Packaging unit: 100 pieces
Weight: 0 kg/PU
All-purpose drilling bracket
RH All-purpose Drilling Brackets
RHE version for all panel radiators
with and without hanging tabs.
Product features:
-In combination with
VDI accessory kit 526 and wall clearance,
Enables eccentric mounting = 30 mm,
Performance Class 3 according to VDI 6036
-Galvanized metal parts
-18 mm core diameter
-Eccentric adjustment range = 8.5mm
Accessories:
-VDI accessory kit, clamping bracket,
spacers and anti-lift device
Dimensions and details can be found in the price list
in the download area.
Max. load F1: 500 N
Max. load F2: 500 N
F1+F2 measured at L: 100 mm
Dimension L: 200 mm
Packaging unit: 100 pieces
Weight: 0 kg/PU
