Art. no.
531447

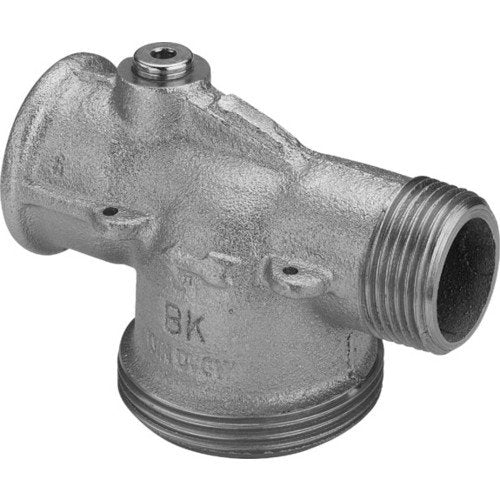

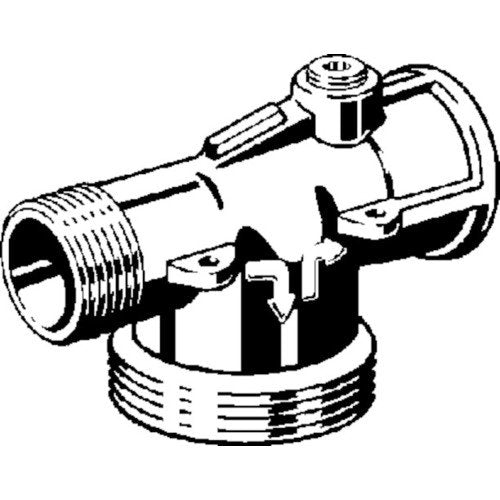

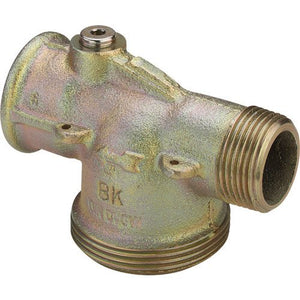

VIEGA Gas Meter Connector G2329 DG-Form A, R1
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Only a few left
4 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Gas Meter Connection Piece
Straight Pattern A
- Galvanized malleable cast iron
- Inlet: R-thread, Outlet: Rp-thread
- Sealable
Features
Meter connection G-thread, test screw
Technical Data
Ambient temperature max. 70 °C
HTB (higher thermal load capacity) 650 °C/30 min GT1
Operating pressure max. 0.5 MPa (MOP 5)
with DIN-DVGW test mark
Model G2329
Item number 531 447
R (tapered external thread): 1
Rp (cylindrical internal thread): 1
G (cylindrical union thread): 2
Straight Pattern A
- Galvanized malleable cast iron
- Inlet: R-thread, Outlet: Rp-thread
- Sealable
Features
Meter connection G-thread, test screw
Technical Data
Ambient temperature max. 70 °C
HTB (higher thermal load capacity) 650 °C/30 min GT1
Operating pressure max. 0.5 MPa (MOP 5)
with DIN-DVGW test mark
Model G2329
Item number 531 447
R (tapered external thread): 1
Rp (cylindrical internal thread): 1
G (cylindrical union thread): 2
