Art. no.
756895

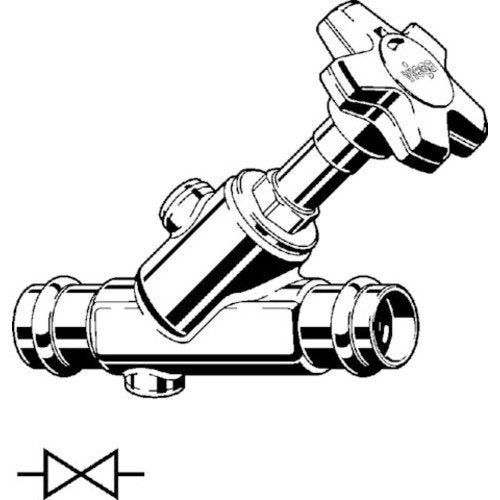

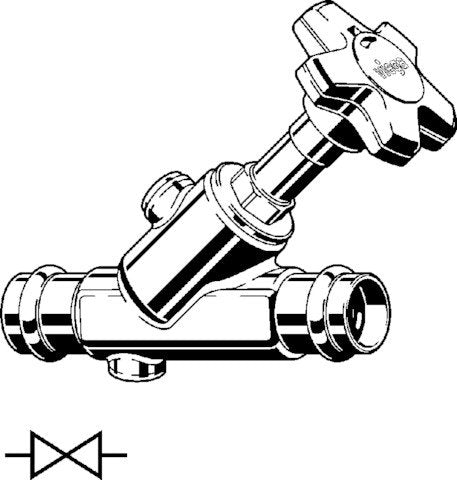

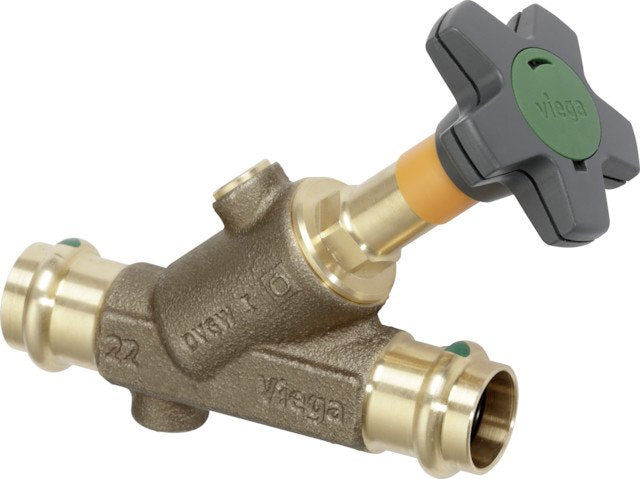

VIEGA EASYTOP Oblique Seat Valve 2237.5 DN25, 28mm Press Connection, PN16, Red Brass
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
140,13 €
Unavailable
In stock
1025 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
VIEGA EASYTOP Oblique Seat Valve 2237.5 DN25, 28mm Press Connection, PN16, Red Brass
140,13 €
Easytop Oblique Seat Valve
(Free Flow Valve), with SC-Contur
- Press connectors
Features
Valve body and top part made of red brass or silicon bronze according to DIN 50930-6 / DIN EN 1982, valve seat and valve disc unit made of stainless steel, spindle gear, open/closed position indicator, ergonomic and closed handwheel with green/red media identification (replaceable), G¼ drain plug, EPDM sealing elements
Technical data
Max. operating pressure 1.6 MPa (PN 16)
Max. operating temperature 90 °C
with DVGW certification mark
Model 2237.5
Article number 756 895
DN (Nominal Diameter): 25
d (Pipe Outer Diameter): 28
(Free Flow Valve), with SC-Contur
- Press connectors
Features
Valve body and top part made of red brass or silicon bronze according to DIN 50930-6 / DIN EN 1982, valve seat and valve disc unit made of stainless steel, spindle gear, open/closed position indicator, ergonomic and closed handwheel with green/red media identification (replaceable), G¼ drain plug, EPDM sealing elements
Technical data
Max. operating pressure 1.6 MPa (PN 16)
Max. operating temperature 90 °C
with DVGW certification mark
Model 2237.5
Article number 756 895
DN (Nominal Diameter): 25
d (Pipe Outer Diameter): 28
