Art. no.
557201
VIEGA Advantix floor drain 4951.1 DN70/100, vert., cover: 150x150mm, frame: plastic
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
67,49 €
Unavailable
In stock
21 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

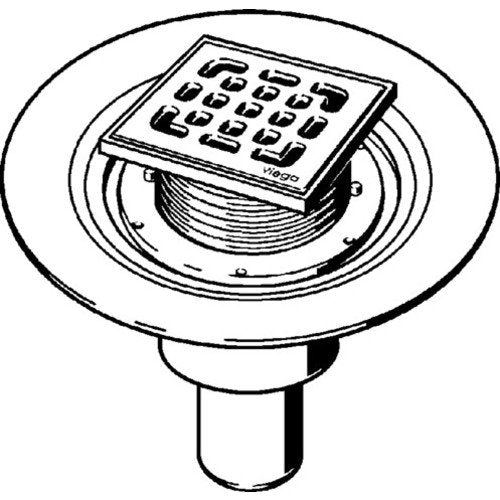

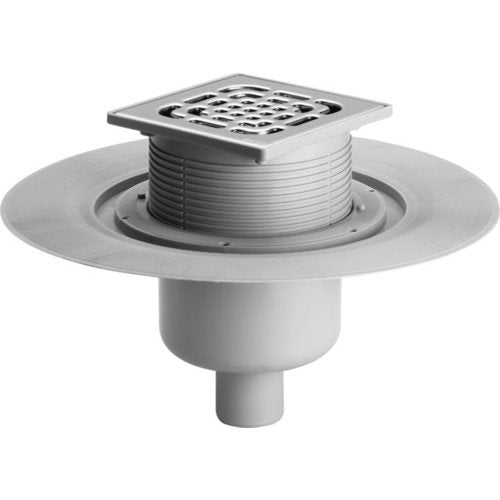

VIEGA Advantix floor drain 4951.1 DN70/100, vert., cover: 150x150mm, frame: plastic
67,49 €
Advantix floor drain
- System dimension 145
Features
Sealing flange, top 150x150 mm rotatable and height-adjustable, plug, plastic frame, stainless steel grating 1.4301, removable odour trap

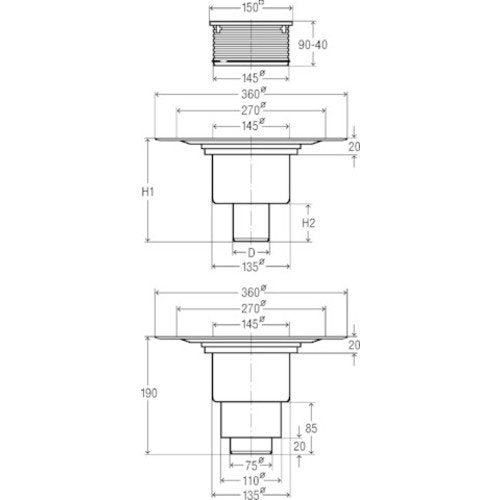

Technical data
Load class K=300 kg
quality-monitored according to DIN EN 1253
Model 4951.1
Article number 557 201
DN (Nominal Diameter): 70/100
H1 (Height): 190
H2 (Height): 85
Drainage capacity accumulation height 10 mm: 0.9
Drainage capacity accumulation height 20 mm: 1.4
Vertical outlet
- System dimension 145
Features
Sealing flange, top 150x150 mm rotatable and height-adjustable, plug, plastic frame, stainless steel grating 1.4301, removable odour trap
Technical data
Load class K=300 kg
quality-monitored according to DIN EN 1253
Model 4951.1
Article number 557 201
DN (Nominal Diameter): 70/100
H1 (Height): 190
H2 (Height): 85
Drainage capacity accumulation height 10 mm: 0.9
Drainage capacity accumulation height 20 mm: 1.4
Vertical outlet
