Vaillant Package 6.210/2 atmoTEC plus VCW244/4-5A E, sensoHOME 380f/2, accessory

VAILLANT Package 6.210/2 atmoTEC plus
VCW 244/4-5A E, sensoHOME 380f/2,
Replacement Accessories

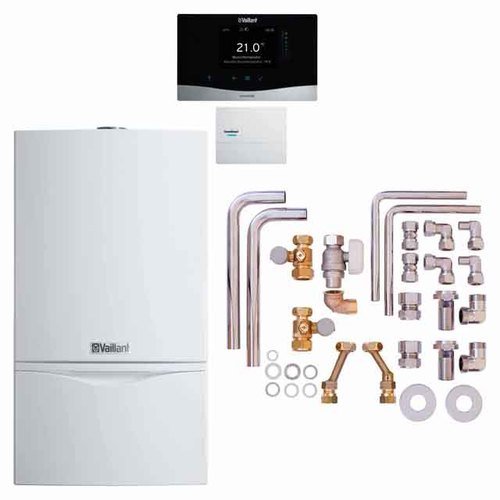

Package consisting of:
VAILLANT atmoTEC plus VCW 244/4-5A E
Gas-fired wall-mounted heater with chimney connection
Product advantages:
- modulating controlled output
- System Pro E
- Aqua-Comfort-System
- Horizontal hydraulic connections
for installation accessories that can be
installed in the appliance casing, and
flexible use for modernization
Features:
- High-efficiency pump, water
pressure sensor and manometer, 12 l
expansion vessel, automatic quick
deaerator and heating safety valve
- Variable frame
- Water-cooled, atmospheric
premix burner
- Electronic partial load adjustment
- Stainless steel secondary heat
exchanger
- Hydraulic and gas-side pre-
installation possible
- DIA system with symbol display,
illuminated
- Service panel
Gas type Natural gas E
Rated output range
80/60 °C 9.6-24.0 kW
Output for domestic hot water 24.0 kW
max. heat load. heating operation 26.6 kW
max. heat load. domestic hot water 26.6 kW
min. heat load. 10.7 kW
Standard efficiency 84 % (Hs) / 93 % (Hi)
Residual head of pump 250 mbar
Flow temperature max. 85 °C
Electrical connection 230/50 V/Hz

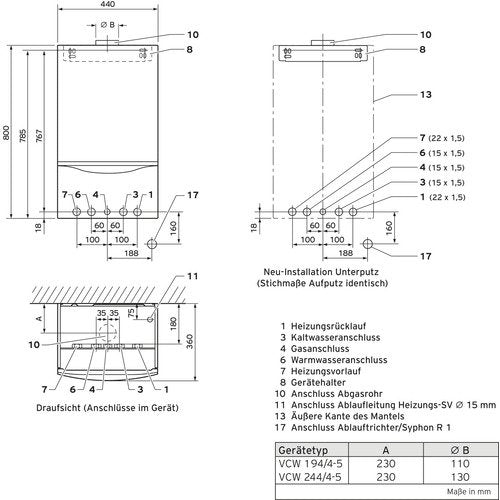

Flow/return connection G 3/4
Cold/hot water connection G 3/4
Gas connection G 1/2
Flue gas connection 130 mm
Height/width/depth 800/440/360 mm
Weight 44 kg
DVGW Product ID No. CE-0085BS0339
Seasonal room heating
energy efficiency class C
Domestic hot water heating energy
efficiency class B
1x 0010017847 atmoTEC plus VCW 244/4-5A

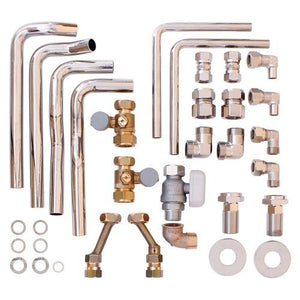

1x 0020201903 VC/VCW/VCI Installation
Set

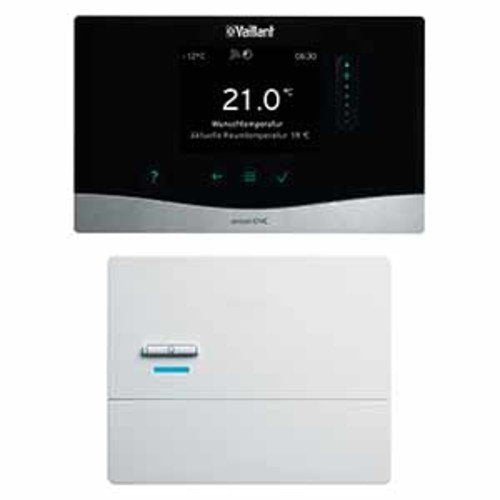

1x 0010045487 sensoHOME 380f/2
Package energy efficiency class heating C
(Spectrum A+++ to G)
Package energy efficiency class domestic
hot water B (Spectrum A+++ to G)
Order No. 0010046392
