Vaillant Package 6.208/2 atmoTEC plus VCW194/4-5A E, sensoHOME 380f/2 Installation Accessory

VAILLANT Package 6.208/2 atmoTEC plus
VCW 194/4-5A E, sensoHOME 380 f/2,
Replacement Accessories

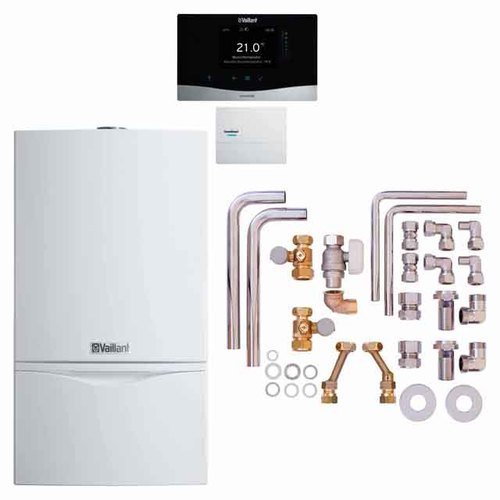

Package consisting of:
VAILLANT atmoTEC plus VCW 194/4-5A E
Gas wall-mounted boiler with flue connection
Product advantages:
- modulated output
- System Pro E
- Aqua-Comfort-System
- Horizontal hydraulic connections
for installation in the appliance casing
of accessories and flexible
use for modernization
Features:
- High-efficiency pump, water
pressure sensor and manometer, 12 l ex-
pansion vessel, automatic rapid
deaerator and heating safety
valve
- Vario frame
- Water-cooled, atmospheric
premix burner
- Electronic partial load adjustment
- Stainless steel secondary heat
exchanger
- Hydraulic and gas-side pre-installation
possible
- DIA system with symbol display, illuminated
- Service panel
Gas type natural gas E
Nominal output range
80/60 °C 8.0-20.0 kW
Output for hot water 20.0 kW
Max. heat load heating mode 22.2 kW
Max. heat load hot water 22.2 kW
Min. heat load 8.9 kW
Standard efficiency 84 % (Hs) / 93 % (Hi)
Residual head of pump 250 mbar
Max. flow temperature 85 °C
Electrical connection 230/50 V/Hz

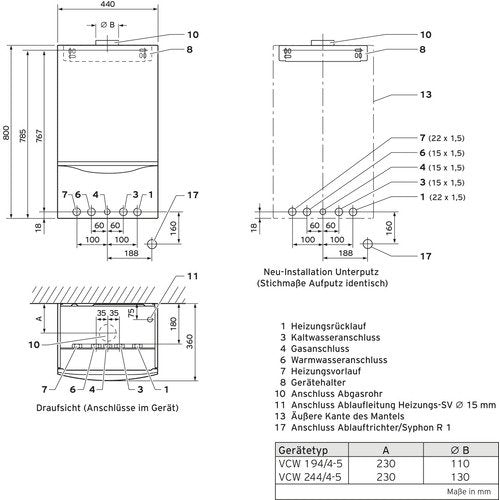

Flow/return connection G 3/4
Cold/hot water connection G 3/4
Gas connection G 1/2
Flue connection 110 mm
Height/width/depth 800/440/360 mm
Weight 44 kg
DVGW product ID no. CE-0085BS0345
Seasonal space heating
energy efficiency class C
Water heating energy efficiency
class B
1x 0010017845 atmoTEC plus VCW 194/4-5A

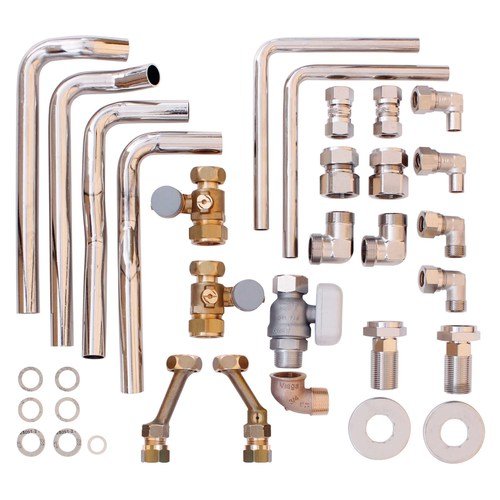

1x 0020201903 VC/VCW/VCI installation
set

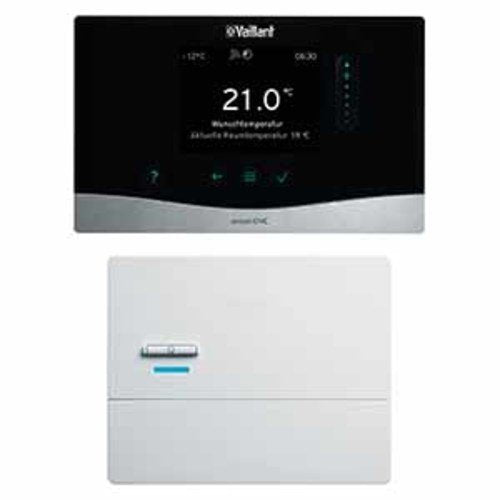

1x 0010045487 sensoHOME 380f/2
Package energy efficiency class heating C
(Spectrum A+++ to G)
Package energy efficiency class hot water
B (Spectrum A+++ to G)
Order no. 0010046390
