VAILLANT Package 2.03/6 ecoVIT exclusiv VKK 286/4 E, VRC 700/6, VIH K 300

VAILLANT Package 2.03/7 Gas Condensing Boiler
ecoVIT exclusiv
VKK 286/4 E, VRC 700, VIH K 300

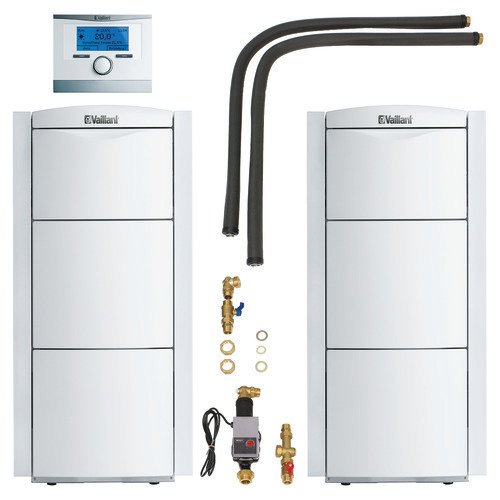

Package consisting of:

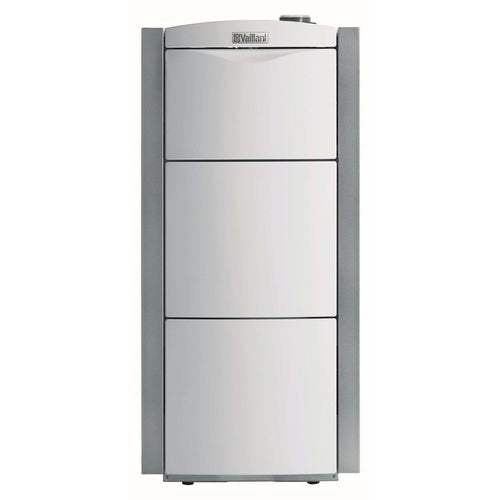

VAILLANT ecoVIT exclusiv VKK
Gas Condensing Boiler
Product advantages
- minimal gas consumption due to most advanced
condensing technology
- modulating controlled output
- Aqua-Condens-System for optimal
condensing utilization even when cylinder is
being charged
- large water content
- eBUS-Electronic
- System Pro E
Equipment
- Condensing boiler made of stainless steel
- Water pressure sensor
- Boiler control strip with STB, STB-
test button, display for diagnosis
and troubleshooting
- Installation field for the Vaillant
weather-compensated heating
controllers multiMATIC 700 and
multiMATIC 700f
- prepared for connection of the
system-certified Vaillant
air/flue gas ducts
- DIA system with plain text display,
illuminated
Gas type Natural gas E
Rated output range
40/30 Deg.C 9.1-28.9 kW
60/40 Deg.C 8.7-27.5 kW
max. heat load. Heating mode 27.0 kW
Standard seasonal efficiency 98 % (Hs) / 109 % (Hi)
Condensate quantity at
40/30 Deg.C, approx. 3.0 l/h
pH value, approx. 3.2
Flow temperature max. 85 Deg.C
Electrical connection 230/50 V/Hz
Flow/return connection Rp 1
Gas connection Rp 3/4
Air/flue gas connection 80/125 mm
Height/Width/Depth 1257/570/691 mm
Net weight 100 kg
Water content 100 l
DVGW product ID no. CE-0085BU0038
Seasonal space heating energy
efficiency class A
0010007512 Gas condensing boiler ecoVIT
exclusiv VKK 286/4 E
305945 Hot water cylinder
actoSTOR VIH K 300

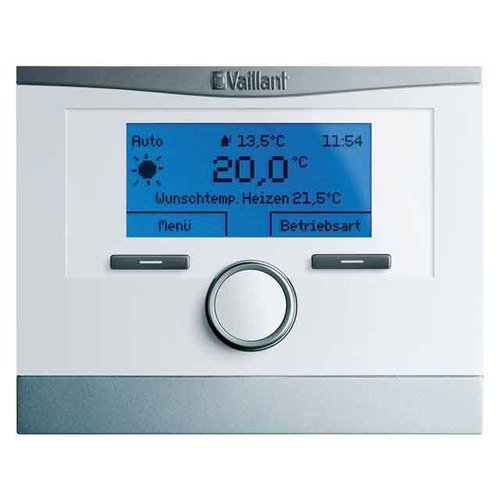

0020266797 multiMATIC 700
0020152977 Cylinder loading set
300848 Gas ball valve straight through 3/4
307591 Boiler safety group
Package energy efficiency class Heating A
(Spectrum A+++ to G)
Order no. 0010029795
