Vaillant Package 1.702/3 ecoTEC plus VC 10CS/1-5, VRC 720/3, Rigid Flue System

VAILLANT Package 1.702/3 ecoTEC plus VC
10 CS/1-5, VRC 720/3, LAS rigid
Product advantages:
- Standard efficiency 98% (Hs) / 109%
(Hi)
- Modulation up to 1:8
- Self-adapting
combustion control for compensating
gas quality fluctuations and for
preventive appliance analysis
- IoniDetect combustion control system
for all gas types
- New, modern design and compact
appliance dimensions for easy
heating system replacement
- Illuminated graphic display with
operation via touch elements
- Display for setting and
monitoring internal
- appliance functions as well as for operating
the single-circuit controller sensoDIRECT 710
- Comfort assurance program for a
reliable heat supply
Equipment:
- High-efficiency pump
- Water pressure sensor, volume flow sensor,
manometer, 10 litre ADG,
safety valve,
compression fitting gas connection
- Integral condensing heat exchanger
made of stainless steel
- Control of an external heating circuit/
circulation pump and a
storage tank charging circuit integrated
- Priority diverter valve
- eBUS interface
- Illuminated graphic display with
touch control elements
- Integrated diagnostic interface
Heat output at 50/30 deg.C natural gas E,
natural gas LL (Min - Max) 3.4-10.9 kW
Heat output at 80/60 deg.C natural gas E,
natural gas LL (Min - Max) 3.0-9.9 kW
Heat output in domestic hot water mode
natural gas E, natural gas LL (Max) 20 kW
Seasonal space heating efficiency
ETA S 92%
Storage charging capacity max. 20 kW
Standard efficiency Hs/Hi 109%
Flow/return connection G 3/4
Gas connection Dia. 20 mm
Height/Width/Depth 720 mm 440 mm 348 mm
Weight (empty) 34 kg
Water content 2.1 l
DVGW Product ID No. II2N3P
1 x 0010043896 VC 10 CS/1-5
1 x 0010045478 sensoCOMFORT VRC 720/3

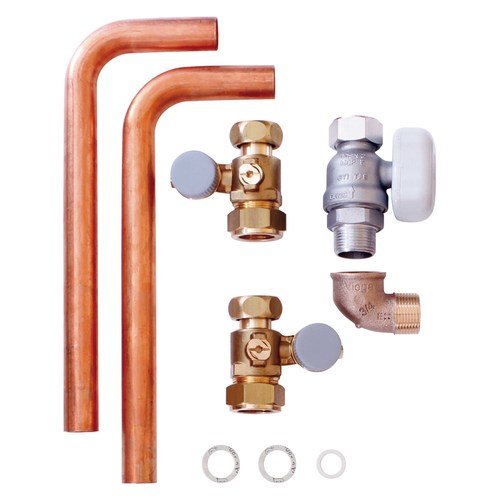

1 x 0020201897 VC installation set,
new installation
1 x 303920 basic connection set,
concentric connection
1 x 0020063135 flue gas pipe pack
rigid (7.5 m)
1 x 303963 shaft cover PP
Package Energy Eff. Class Heating A (A+++ - G)
Order no. 8000016470
