Vaillant Package 1.686/2 ecoTEC plus VCW 25/32CS/1-5, VRC 710

VAILLANT Package 1.686/2 ecoTEC plus VCW
25/32 CS/1-5, VRC 710
Product advantages:
- Standard efficiency 98% (Hs) / 109%
(Hi)
- Modulation up to 1:8
- Self-adaptive
combustion control for compensating
gas quality fluctuations and for
proactive appliance analysis
- IoniDetect combustion control system
for all gas types
- New, modern design and compact
appliance dimensions for easy
heating replacement
- Combi appliance with integrated
domestic hot water heating based on the
flow-through principle
- Aqua-Comfort-System plus,
outlet temperature control and hot
water without long waiting times
- Illuminated graphic display with
operation via touch elements
- Display for setting and
monitoring internal
appliance functions and for operating
the single-circuit controller sensoDIRECT 710
- Comfort protection program for a
reliable heat supply
Features:
- High-efficiency pump
- Water pressure sensor, volume flow sensor,
manometer, 10 litre expansion tank,
- Safety valve,
compression fitting gas connection
- Integral condensing heat exchanger
made of stainless steel
- Secondary heat exchanger made of stainless steel
- Integrated cylinder control with
priority changeover valve
- eBUS interface
- Illuminated graphic display with
touch controls
- Integrated diagnostic interface
Output at
50/30 °C (natural gas EE/LL) 3.8 kW 26.4kW
80/60 °C (natural gas EE/LL) 3.5 kW 24.7kW
80/60 °C (LPG) 7.8 kW 32 kW
Output for domestic hot water Max 32
kW
Seasonal room heating efficiency
ETA S 94%
Flow/return connection G 3/4
Gas connection Diameter 20 mm
Air/flue gas connection Diameter 60/100
Height/Width/Depth 720 mm 440 mm 348 mm
1 x 0010043902 VCW 25/32 CS/1-5

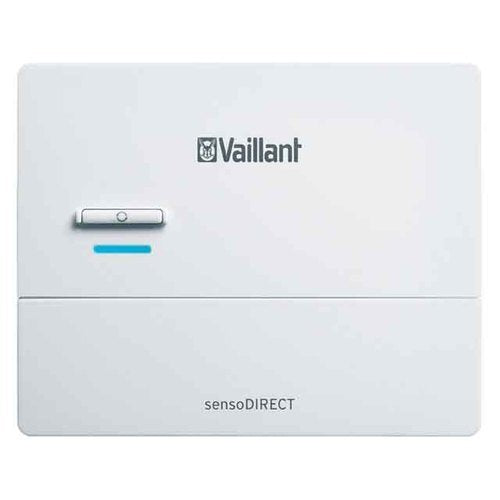

1 x 0020274790 sensoDIRECT VRC 710
Package Energy Eff. Class Domestic Hot Water A (A+++ -
G)
Order No. 8000013996
