VAILLANT Package 1.143/2 ecoTEC plus VC 636/5-5 LL, VRC 700/6, hydraulic separator

VAILLANT Package 1.143/2
VC636/5-5 E, multiMATIC 700, acc.

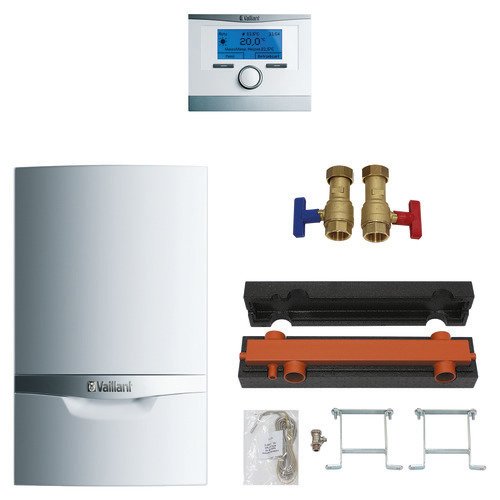

Package consisting of:

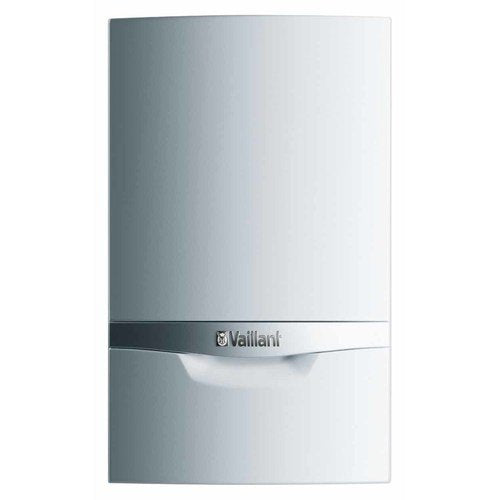

VAILLANT ecoTEC plus VC 636/5-5 E
Gas-fired condensing wall-mounted boiler
Product advantages
- Standard efficiency 98 % (Hs)/109 % (Hi)
- Modulation range from 20 % to 100 %
- Pneumatic gas-air composite
- Automatic partial load adjustment
- Appliance hydraulics without bypass valve
- Intuitively operable appliance display
- Automatic deaeration system for
easy appliance deaeration
- Vertical hydraulic connections and
extensive installation accessories
for flexible use
- Can be used as a cascade system with max. 8 appliances
- proKlima eligible for funding
- Operation with natural gas E, LL, bio-natural gas,
LPG
Equipment
- High-efficiency pump
- Integrated cylinder/domestic hot water
control
- Rain and condensate water
collection device, rainwater
drain hose
- Integral condensing heat exchanger
made of stainless steel
- Integrated air separator
- Water pressure sensor, manometer
- Integral condensing heat exchanger
made of stainless steel
- eBUS interface
- DIA system with plain text display,
illuminated
- Conversion kit to natural gas E or LL
included
Output at
50/30 Deg.C (natural gas E/LL) 12.2 - 63.5 kW
60/40 Deg.C (natural gas E/LL) 12.0 - 62.1 kW
Standard efficiency 98 % (Hs) / 109 % (Hi)
Flow/return connection G 1 1/2
Gas connection 25 mm
Air/flue gas connection 80/125 mm
Height/width/depth 720/440/473 mm
CE CE-0063CS3428
1x 0010021519 Gas-fired wall-mounted boiler ecoTEC
plus VC 636/5-5 LL condensing technology

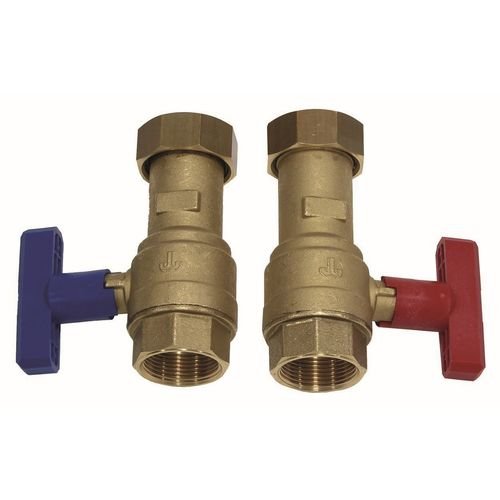

1x 0020059560 Installation set ecoTEC
plus VC 406-636/5-5, VC 808-1206/5-5
1x 300849 Gas ball valve straight-through Rp1 with
fire protection device
1x 0020106195 Thermal insulation shell EPP (2
pcs.)

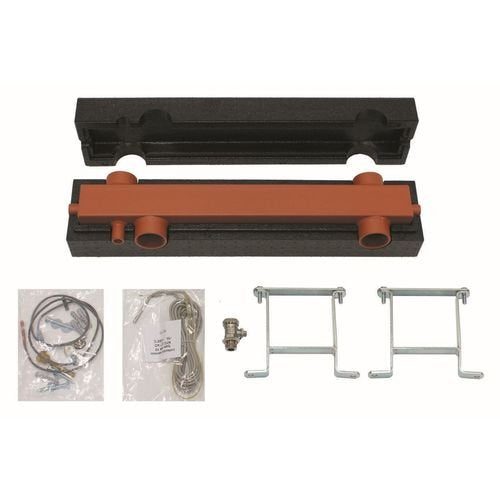

1x 306721 Hydraulic separator WH-95

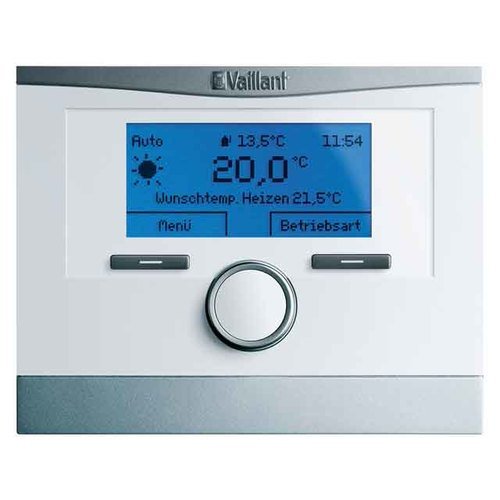

1x 0020266797 Heating controller multiMATIC
VRC 700 1 HC, weather-compensated
Package energy efficiency class heating A
(Spectrum A+++ to G)
Order no. 0010029703
