VAILLANT Package 1.137/2 ecoTEC plus VC 406/5-5 LL, VRC 700/6, accessories

VAILLANT Package 1.137/2
VC406/5-5 LL, multiMATIC 700, acc.

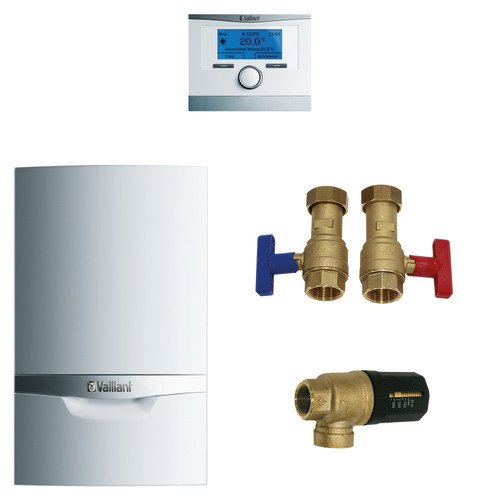

Package consisting of:

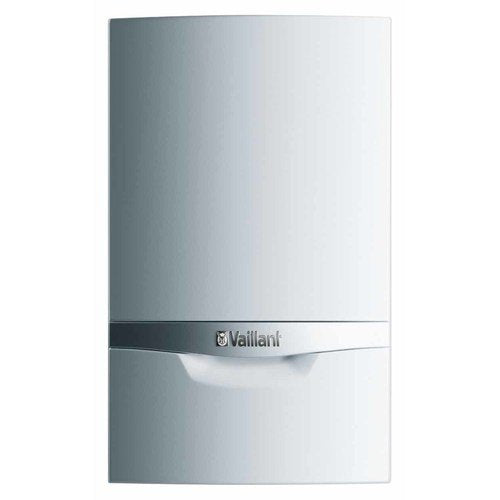

VAILLANT ecoTEC plus VC 406/5-5 LL
Gas-fired wall-mounted condensing boiler
Product advantages
- Standard efficiency 98% (Hs)/109% (Hi)
- Modulation range from 20% to 100%
- Pneumatic gas-air compound
- Automatic partial load adaptation
- Appliance hydraulics without bypass valve
- Intuitively operated appliance display
- Automatic deaeration system for
easy appliance deaeration
- Vertical hydraulic connections and
extensive installation accessories
for flexible use
- Can be used as a cascade system with max. 8 appliances
- proKlima eligible
- Operation with natural gas E, LL, bio-natural gas,
LPG
Features
- High-efficiency pump
- Integrated cylinder/hot water
control
- Rainwater and condensate
collection device, rainwater
drain hose
- Integrated stainless steel
condensing heat exchanger
- Integrated air separator
- Water pressure sensor, manometer
- Integrated stainless steel condensing heat exchanger
- eBUS interface
- DIA system with plain text display,
illuminated
- Conversion kit for natural gas E or LL
included
Output at
50/30 Grd.C (natural gas E/LL) 8.7 - 40.7 kW
60/40 Grd.C (natural gas E/LL) 8.5 - 39.4 kW
Standard efficiency 98% (Hs) / 109% (Hi)
Flow/return connection G 1 1/2
Gas connection 25 mm
Air/flue gas connection 80/125 mm
Height/width/depth 720/440/405 mm
CE CE-0063CS3428
1x 0010021648 Gas wall-mounted boiler ecoTEC
plus VC 406/5-5 LL condensing technology

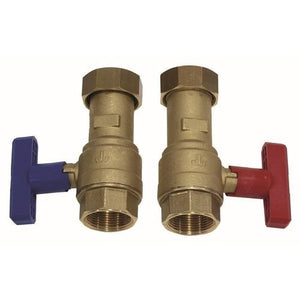

1x 0020059560 Installation set ecoTEC
plus VC 406- 636/5-5, VC 808-1206/5-5
1x 300849 Gas ball valve straight Rp1 with
fire protection device
1x 306257 Cylinder sensor for
hot water cylinder
1x 0020059561 Bypass valve ecoTEC
plus VC 406/5-5
1x 0020106195 EPP thermal insulation shell (2
pcs.)

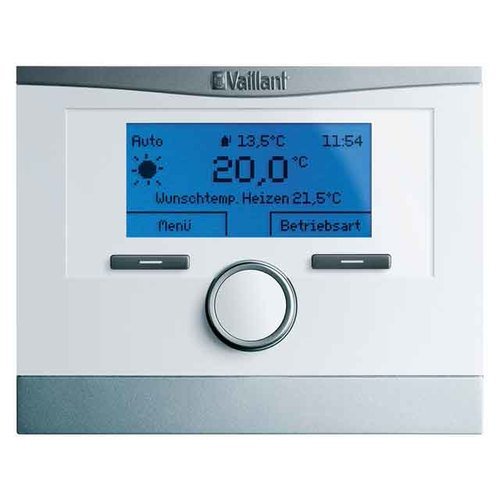

1x 0020066797 Heating controller multiMATIC
VRC 700 1 HC, weather-compensated
Package energy efficiency class heating A
(Spectrum A+++ to G)
Order No. 0010029697
