Vaillant Package 1.128 ecoTEC plus VC 15CS/1-5, sensoHOME 380/2

VAILLANT Package 1.128 ecoTEC plus VC
15CS/1-5 E, sensoHOME 380/2
Product advantages:
- Standard efficiency 98 % (Hs) / 109 %
(Hi)
- Modulation up to 1:8
- Self-adaptive combustion
control for compensating gas quality
fluctuations and for preventive device
analysis
- IoniDetect combustion control
system for all gas types
- New, modern design and compact device
dimensions for easy heating system
replacement
- Illuminated graphic display with
operation via touch elements
- Display for setting and monitoring
internal device functions and for
operating the single-circuit controller
sensoDIRECT 710
- Comfort protection program for a
reliable heat supply
Features:
- High-efficiency pump
- Water pressure sensor,
volume flow sensor, manometer,
10 liter ADG,
- Safety valve,
compression fitting gas connection
- Integral condensing heat exchanger
made of stainless steel
- Control of an external heating circuit/
circulation pump and a cylinder charging
circuit integrated
- Priority diverter valve
- eBUS interface
- Illuminated graphic display with
touch controls
- Diagnostic interface integrated
Type VC 15 CS/1-5
Rated output range natural gas E/LL
50/30 deg.C 3.4-16.4 kW
80/60 deg.C 3.0-14.8 kW
Rated output range liquid gas P
50/30 deg.C 5.4-16.4 kW
80/60 deg.C 4.8-14.8 kW
Cylinder charging capacity max. 20 kW
Standby heat loss at
tK70 deg.C 0.61%
Standard efficiency Hs/Hi 109 %
Flow/return connection G 3/4
Gas connection Dia. 20 mm
Height/width/depth 720 mm 440 mm 348 mm
Weight (empty) 34 kg
Water content 2.1 l
CE PIN CE-0063CU3910
Gas appliance category I2N, I3P
Space heating Energy Eff. Class A (A+++ -
D)
1 x 0010043897 ecoTEC plus VC 15CS/1-5

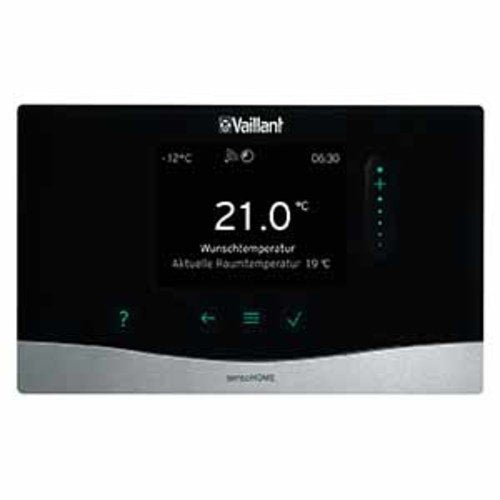

1 x 0010045485 VRT 380/2

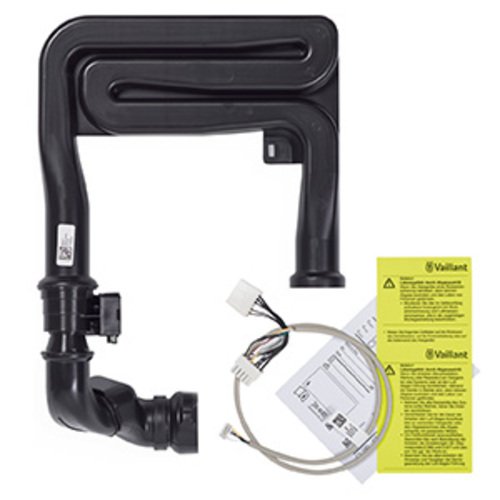

1 x 0010038882 Backflow preventer
Package Energy Eff. Class Hot water A (A+++ -
G)
Order No. 8000014538
