VA Package 4.3106 aroTHERM plus VWL 35/6 A S2 VWZ MEH 97/6

VAILLANT Package 4.3106 aroTHERM plus
VWL 35/6 A S2, VRC 720/3 and
Hydraulic station VWZ MEH 97/6

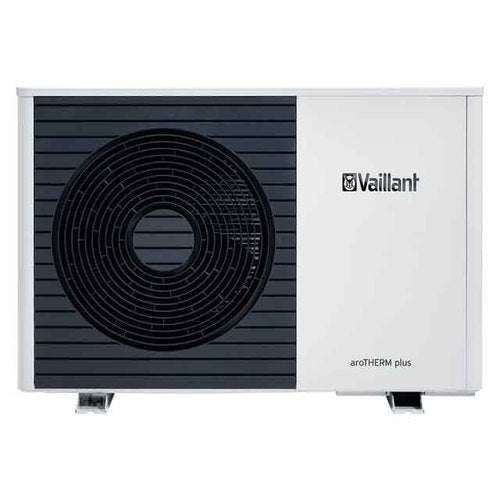

aroTHERM plus VWL 35/6 A S2
(Air/Water)
Product advantages:
- High flow temperatures for
modernization
- Modulating compressor with
inverter technology constantly adapts output
to the current building heating load
- Active cooling function integrated as standard
- SoundSafeSystem for exceptionally quiet
operation
- Can also be integrated into an existing heating system
- Can be operated in a hybrid system bivalently
alternatively, in parallel or with the
triVAI parameter
- Intelligent use of
self-generated energy (PVready)
Features:
- Modulating EC fan
- High-efficiency pump
- Sensor-controlled refrigeration circuit
- Integrated R290 safety concept
- Automatic vent valve
- Integrated active cooling operation<>(the heating system must be prepared on site for this
and a
coding resistor must be used)
Heating output (A-7W35) 3.6 kW
Coefficient of performance 2.7
Heating output (A2W35) 2.0 kW
Coefficient of performance 3.9
Heating output (A7W35) 3.3 kW
Coefficient of performance 4.8
Connections
Heating flow/return G 1 1/4
Max. operating pressure 3 bar
Pump volumetric flow 860 l/h
Residual head 780 mbar
Maximum temperature
- with heat pump 75 deg.C
- with heat pump + auxiliary heater 75 deg.C
Height/Width/Depth 765/1100/450 mm
Weight, ready for operation 114 kg
Sound power level 51 dB(A)
Protection class IP 15 B
Operating limits air inlet temperature:
Heating operation + DHW -20/43 deg.C
Refrigerant (filling quantity) R290 (0.6 kg)
Global warming potential (EU) 3.0
CO2 equivalent 0.0018 t

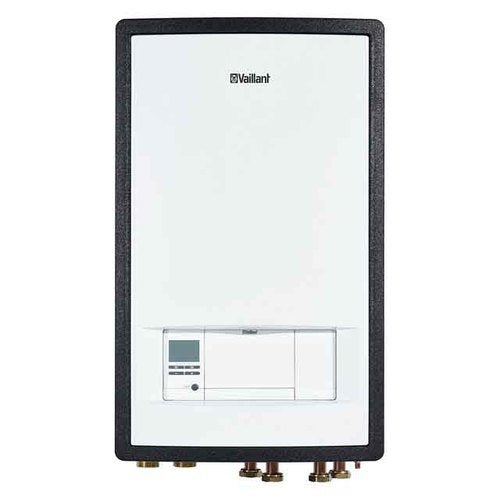

Hydraulic station VWZ MEH 97/6
Features:
- Modulating electric auxiliary heater
- up to 8.5 kW/400 V
- 3-way diverter valve hot water
- Safety valve 3 bar
- 10 liter expansion tank
- DIA system with plain text display,
illuminated
Package consists of:
1x 0010021116 Heat pump (air/water)
aroTHERM plus VWL 35/6 A S2
1x 0010023609 Hydraulic station
VWZ MEH 97/6 for aroTHERM plus

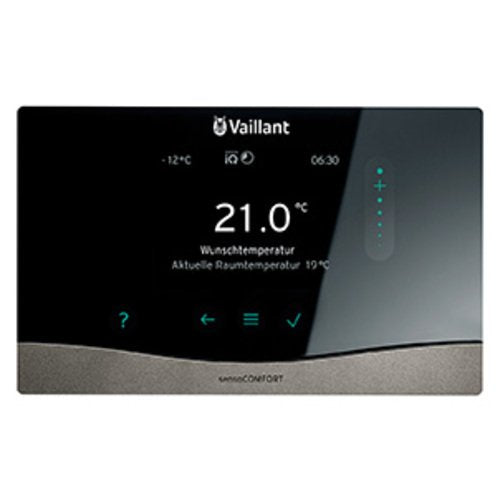

1x 0010045478 Heating controller
sensoCOMFORT VRC 720/3, 1 heating circuit,
weather-compensated, system controller
1x 8000015458 VR 940f myVAILLANT connect
2x 0010039178 VAILLANT Connection set
Hydraulic station
Package energy efficiency class heating
A++ (Spectrum A+++ to G)
Order no. 8000029045
