VA Package 1.401/5 ecoCOMPACT VSC206/4-5 E VRC 700/6, Console, Rigid Air/Flue

VAILLANT Package 1.401/5
ecoCOMPACT VSC206/4-5 E, VRC 700/6,
Console, Rigid Flue Gas

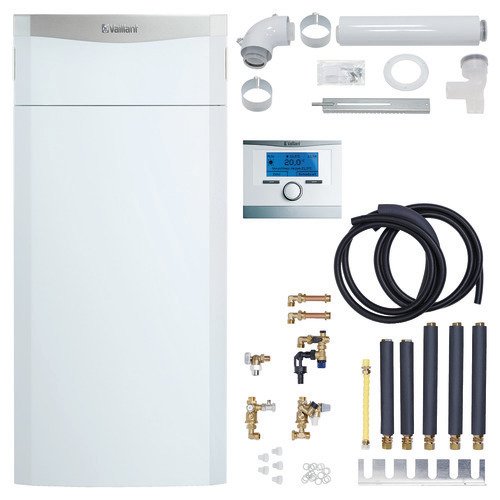

Package consisting of:
VAILLANT ecoCOMPACT VSC 206/4-5 90
Compact gas condensing boiler
Combination unit for heating and
hot water
Product advantages
- High-efficiency pumps for heating and
cylinder charging
- Electronic gas-air compound
- Multi-sensor system
- All components/accessories in one
casing
- Split Mounting Concept
Features
- Integrated DHW stratified cylinder
(90 liters)
- Stainless steel secondary heat exchanger
- High-efficiency charging and circulation pump
- Priority diverting valve, pressure sensor
- 15 liter expansion vessel
- Integral condensation heat exchanger
made of stainless steel
- Integrated cylinder control
- DIA system with illuminated
symbol display and installation option
for a weather-compensated
heating controller calorMATIC VRC 700
Gas type E
Nominal output range
- 40/30 deg.C 4.3 - 21.6 kW
- 60/40 deg.C 4.1 - 20.8 kW
- Cylinder charging output 24.0 KW
- Max. heat load cylinder charging 24.5 KW
- Standard utilization efficiency 98% (Hs)/109% (Hi)
- Modulation range from 20 to 100%
- Max. flow temperature 85 deg.C
- Electrical connection 230V/50Hz
- Max. electrical power consumption 70 W
- Flow/return connection Rp 3/4
- Cold/hot water connection Rp 3/4
- Gas connection Rp 3/4
- Air/flue gas connection 60/100 mm
- Weight (empty) 106 kg
- Total cylinder volume 90 l
- Output capacity index NL 2.3
- Height/Width/Depth 1320/595/693 mm
Seasonal space heating
energy efficiency class A
Seasonal hot water heating
energy efficiency class A
Order no. 0010015600
1x 0010015600 ecoCOMPACT VSC 206/4-5 90

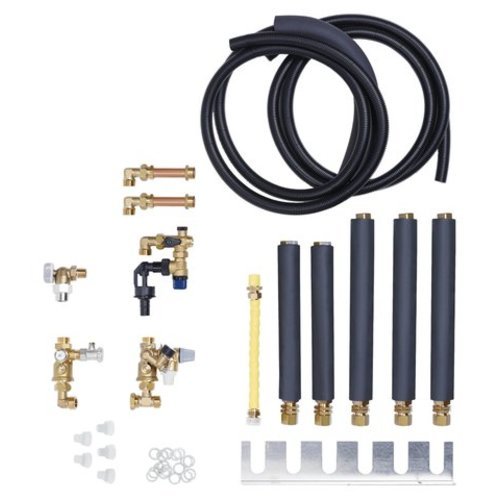

1x 0020170496 Flexible connection console
1x 0020266797 multiMATIC 700
1x 303920 Basic connection set condensing
1x 0020063135 Flue pipe pack (7.5 m)
1x 303963 Shaft cover
Package energy efficiency class heating A
(Spectrum A+++ to G)
Package energy efficiency class hot water
A
(Spectrum A+++ to G)
Order no. 0010029724
