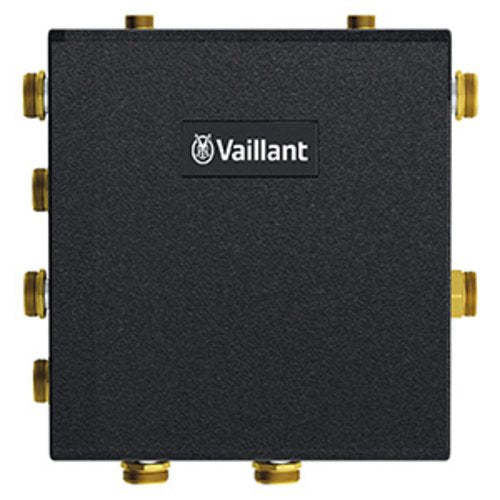

VA Hybrid Kit, flexible hydraulic unit

Hybrid kit, flexible hydraulic unit
incl. insulation, mixing pipe,
overflow valve, check valve,
3-way diverter valve, temperature sensor
and depth-adjustable wall bracket.
Connections for an air/water
heat pump (G 1 1/4), buffer tank (G
1 1/4), a peak load device (G 3/4),
domestic hot water tank (G 1 1/4) and an
outlet for heat supply (G 1
1/4). Piping to be provided by the customer.
Dimensions without wall bracket: 423 x 405 x
228 mm (HxWxD)
Dimensions with wall bracket: 423 x 405 x
298-338 mm (HxWxD)
Note: For simplified setup
of a hybrid system. Compatible with
VAILLANT air-to-water heat pumps up to
12kW (aroTHERM plus and aroTHERM Split)
as well as wall-mounted VAILLANT eBUS
gas condensing boilers up to 30kW output.
Further information can be found in
the associated installation manual.
Order no. 8000030595
