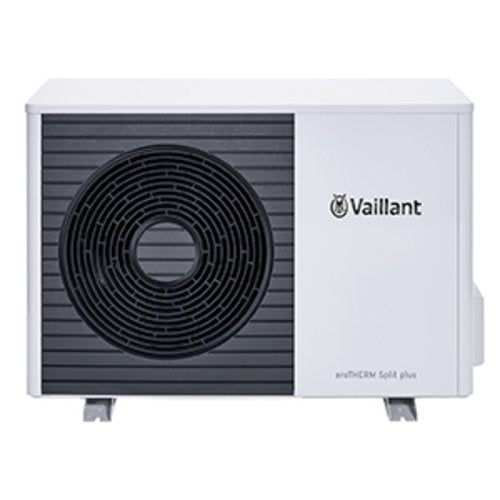

VA Heating Heat Pump Air/Water aroTHERM Split plus VWL 75/8.2 AS S2

VAILLANT Heating Heat Pump
Air/Water aroTHERM Split plus
VWL 75/8.2 AS S2
Product advantages:
- Modulating compressor with
inverter technology constantly adjusts
the output to the current
building heating load
- Intelligent use of
self-generated energy (PV-ready)
- Pre-filled with refrigerant for up to 15 m
line length
- Up to 7 units can be cascaded
- SoundSafeSystem for particularly quiet
operation
Features:
- Sensor-controlled refrigerant circuit
- Integrated active cooling operation<>(the heating system must be prepared on site
and a coding resistor must be used)
- Condensate tray heater
Heating capacity (A-7/W35) 6.39 kW
Coefficient of performance 3.10
Heating capacity (A2/W35) 3.13 kW
Coefficient of performance 4.40
Heating capacity (A7/W35) 5.07 kW
Coefficient of performance 5.20
Cooling capacity (A35/W18) 7.29 kW
EER 4.00
Technical data:
Height/Width/Depth 960/1100/450 mm
Weight, operational 100 kg
Sound power level (max.) 58 dB(A)
Protection class IP14 B
Air inlet temperature -25/43 Deg.C
Refrigerant (fill quantity) R32 (1.5 kg)
Global warming potential (EU) 675
CO2 equivalent 1.0125 t
Order no. 0010039744
