Universal Pipe Clamp FRS Clamping W. 111-119mm FISCHER

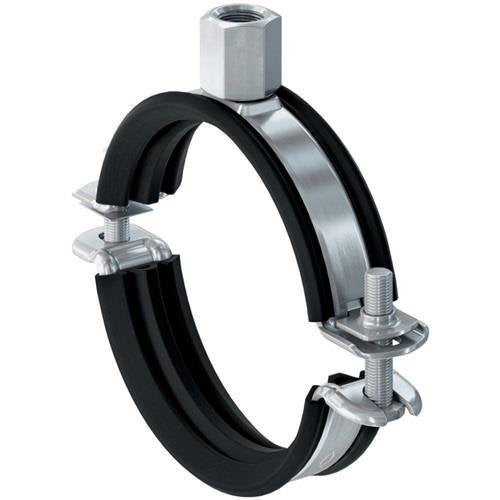

The fischer pipe clamp FRS-L Universal is a two-screw pipe clamp made of galvanised steel grade DD11 with a combined connection thread M 8/M 10 and a sound insulation certificate. The quick-release fastener guarantees simple and time-saving assembly. The two-screw design allows for optimised adjustment to the pipe's outer diameter. Together with the combined connection thread, this increases flexibility. This allows pipes with an outer diameter of 8 - 119 mm to be fastened indoors with threaded rod or hanger bolt in accordance with the fire protection requirements of fire resistance class R 120 and the MLAR. The pipe clamp, with a chlorine and silicone-free sound insulation insert, complies with the requirements of DIN 4109. Marketing claim: The lightweight two-screw pipe clamp with quick-release fastener and combined connection nut. Advantages: The clamp band with pronounced beads at the edge gives the sound insulation insert a firm seat and prevents it from falling out during pipe adjustment. The two-screw design of the FRS-L Universal allows optimal adjustment to any pipe outer diameter. The fire test report and the sound insulation test report guarantee objectively tested functional safety. The unique quick-release fastener with a circumferential rim enables safe and time-saving assembly. The connection nut with combined thread M8 / M10 enables optimised inventory management. The captive screw ensures trouble-free assembly. Top features: Profiled clamp band for outstanding rigidity and stability. Optimised hold between sound insulation insert and clamp band. Combined thread for flexible connection options. Captive screws. Fire protection test R120. MLAR R30 testing. Further technical properties: · Connection thread: M8 / M10 · Fire protection tested: Yes · Fire behaviour: DIN 4102: Class B2 · Clamp band width: 20mm · Clamp band width x thickness: 20 x 1.8mm · Installation torque: 2Nm · Nominal size: 4 inches · Professional / DIY: Professional · Clamping range: 110 - 119mm · Clamping range from - to: 110mm · Clamp band thickness: 1.8mm · VDS approval: Yes · Packaging variant: Folding carton · Max. recommended static load (central tension): 1.69kN
