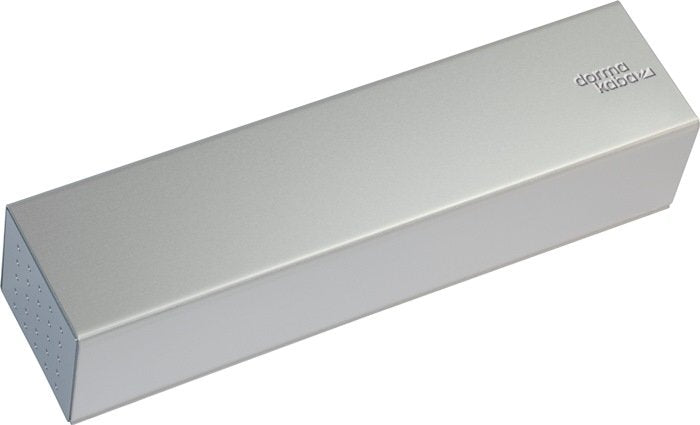

Door Closer TS 93 B Standard Mount Hinge Side Silver EN 5-7 DORMAKABA

Slide rail door closer according to EN 1154 · with CE mark · in Contur design · with sharply decreasing opening torque for easy door opening according to DIN SPEC 1104 · for mounting on the hinge side · closing speed and latching action conveniently and infinitely adjustable from the front via valve · hydraulically controlled backcheck and delayed closing adjustable · mounting bracket with universal hole pattern system · usable for DIN left and right · for door leaf mounting on the hinge side (opening angle up to 180° possible) or transom mounting on the opposite hinge side (opening angle limited to approx. 120° - 145°) · (Optionally also available as TS 93 G = for door leaf mounting on the opposite hinge side / transom mounting on the hinge side) Further technical characteristics: · subject to testing: yes
