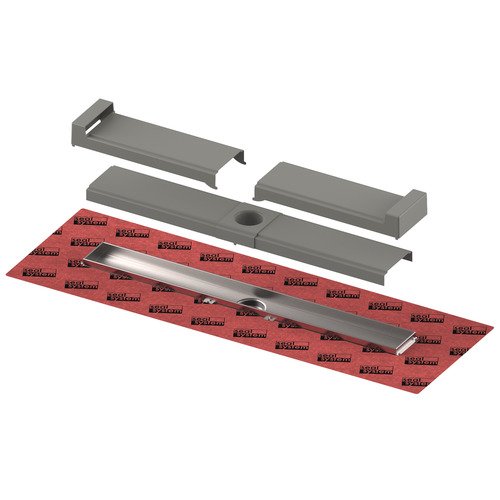

Tece EVO Shower Channel 800mm with Attached Seal System Sealing Sleeve

sanibel shower channel A19

Straight stainless steel channel body, including factory-fitted Seal System sealing membrane with construction protection for installation in screed, for implementing a DIN 18534 compliant connection of the sanibel shower channel A19 to the composite seal.

Consisting of:

• continuously closed channel body made of polished stainless steel, material 1.4301 (304)
• capillary protection edge to prevent capillary shower water ingress under the tiles
• backflow-proof secondary drainage via the fiberglass-reinforced hard plastic shell
• factory-fitted Seal System sealing membrane for on-site integration into the liquid or sheet composite seal
• construction protection with authenticity seal for stainless steel channel and Seal System sealing membrane
• mount for installing optional mounting feet and for anchoring in the screed
• central channel connector for connecting the drain
• internal slope to improve water drainage and self-cleaning effect
• dip tube seal
• optionally secondary drainable

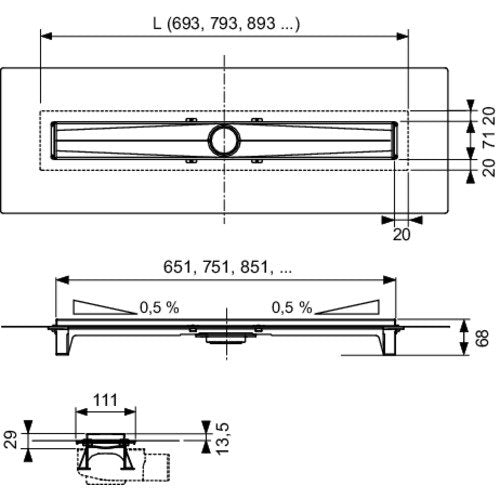

Nominal length: 800 mm
Total length L: 793 mm
Visible dimension after installation: 751 mm
Shell construction width: 111 mm
Visible width after installation: 71 mm
Order no.: 7082951
