TECE EVO SHOWER CHANNEL 1200MM STRAIGHT WITH DDY SEALING TAPE

sanibel shower channel A19

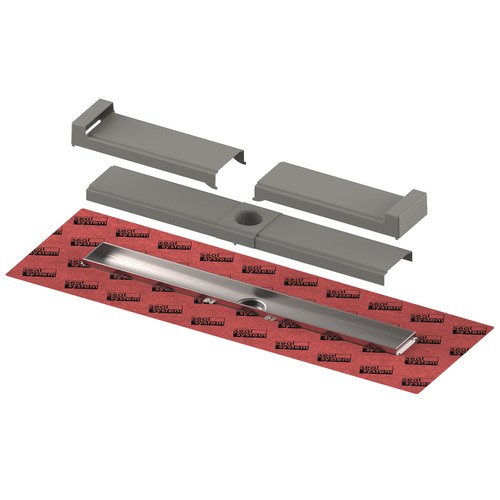

Straight stainless steel channel body, including factory-fitted Seal System sealing membrane with construction protection for installation in the screed, for implementing a DIN 18534 compliant connection of the sanibel shower channel A19 to the composite sealing.

Consisting of:

• continuously closed channel body made of polished stainless steel, material 1.4301 (304)
• capillary protection edge to prevent capillary shower water penetration under the tiles
• backflow-proof secondary drainage via the glass-fibre reinforced hard plastic shell
• factory-fitted Seal System sealing membrane for on-site incorporation into the liquid or sheet-like composite sealing
• construction protection with authenticity seal for stainless steel channel and Seal System sealing membrane
• mount for optional mounting feet and for anchoring in the screed
• central channel spigot for connecting the drain
• internal slope to improve water drainage and self-cleaning effect
• dip tube seal
• optionally secondarily drainable

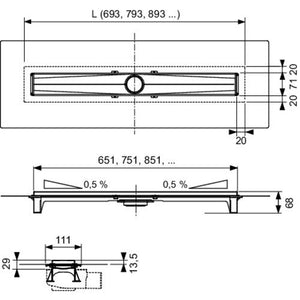

Nominal length: 1200 mm
Total length L: 1193 mm
Visible dimension after installation: 1151 mm
Rough construction width: 111 mm
Visible width after installation: 71 mm
Order no.: 7082954
