TA Balancing Valve TA-Multi Set 1, DN32 with Handwheel and Drain

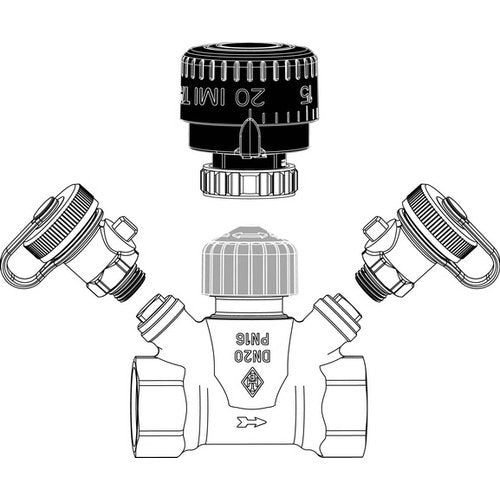

IMI TA Multi Set 1 circuit balancing valve or circuit shut-off valve. TA-Multi Set 1 consists of: - TA-Multi base valve as a circuit balancing valve or circuit shut-off valve. - Pre-setting and shut-off handwheel with continuous and limitable pre-setting. Black plastic. Suitable for IMI HEIMEIER Partner-Clips or Color-Clips, e.g. blue, red for marking flow and return. - 2 filling and draining ball valves for draining and differential pressure or flow measurement. All operating elements are located on the handwheel side. With pressure-relieved valve cone. This makes it suitable for use at higher differential pressures. Due to the M30x1.5 connection, TA-Multi is also suitable for mounting differential pressure regulators, thermostatic heads, return temperature limiters, or actuators. Housing made of corrosion-resistant, dezincification-resistant gunmetal. Max. operating temperature TB 120 °C. Nominal pressure PN 16. Make: IMI TA, Type: TA-Multi Set 1, Nominal diameter: DN 32, Version: Internal thread, R 1 1/4 x R 1 1/4, Item no. 5850-05.500
