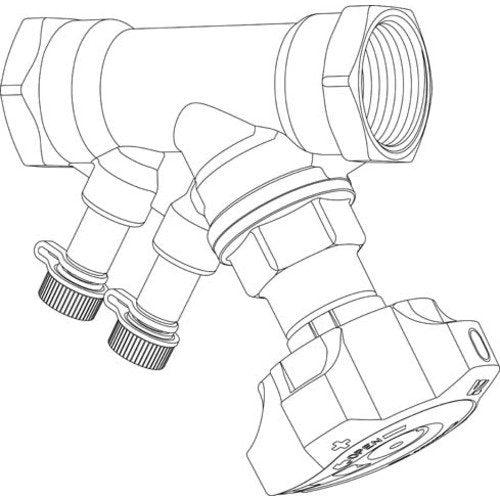

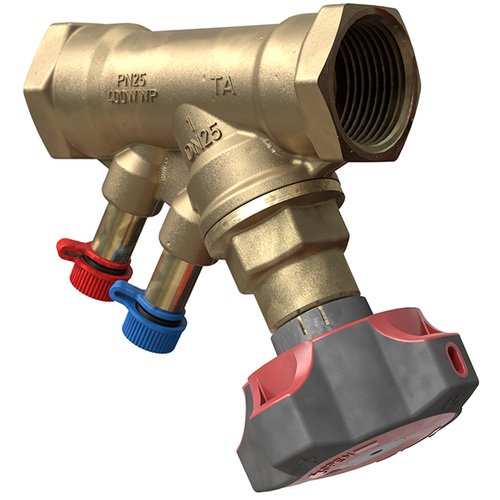

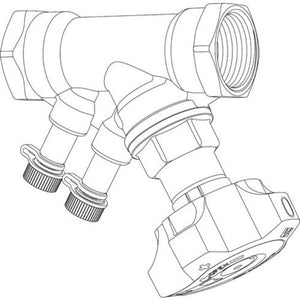

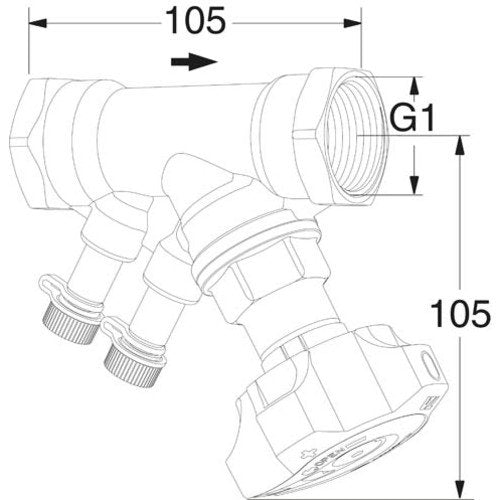

TA Balancing Valve STAD, PN 25 internal thread, DN25

TA balancing valve, flow balancing valve, with pre-setting in oblique seat design, for heating, ventilation and air conditioning, and industrial systems. Housing and internal parts made of corrosion-resistant, dezincification-resistant AMETAL-C. Stepless pre-setting, by stroke limitation and digital display in the handwheel, sealable. Self-sealing measuring nipples (double-sealed), for pressure drop or flow measurement. All operating elements on the handwheel side. Non-rising stem with anti-rotation valve plug and O-ring seal. Seat seal: Plug with EPDM O-ring. Internal thread connection for threaded pipe. Operating temperature from - 20 deg. C to + 120 deg. C. Nominal pressure PN 25. Make: IMI TA, Type: STAD, Version: Internal thread, without drain adapter, DN 25 (1
