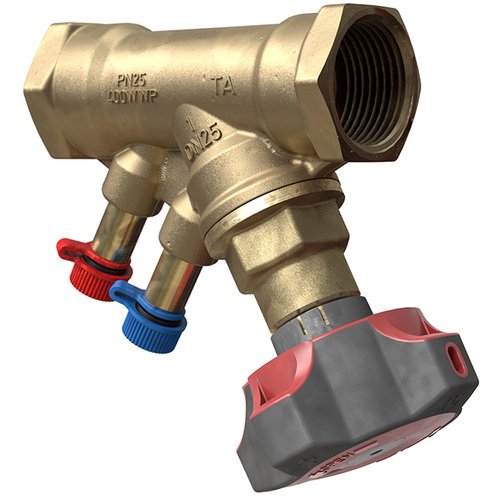

TA STAD Balancing Valve, PN 25 internal thread, DN20

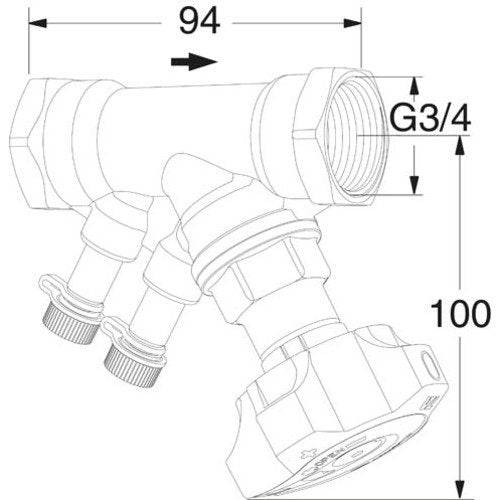

TA balancing valve, presettable, globe pattern, for heating, ventilation, air conditioning, and industrial applications. Housing and internals made of corrosion-resistant, dezincification-resistant AMETAL-C. Continuous presetting via stroke limitation and digital display in the handwheel, sealable. Self-sealing measuring nipples (double-sealed) for pressure drop or flow measurement. All operating elements on the handwheel side. Non-rising spindle with anti-tamper valve plug and O-ring seal. Seat seal: plug with EPDM O-ring. Female thread connection for threaded pipe. Operating temperature from -20°C to +120°C. Nominal pressure PN 25. Make: IMI TA, Type: STAD, Version: Female thread, without drain, DN 20 (3/4
