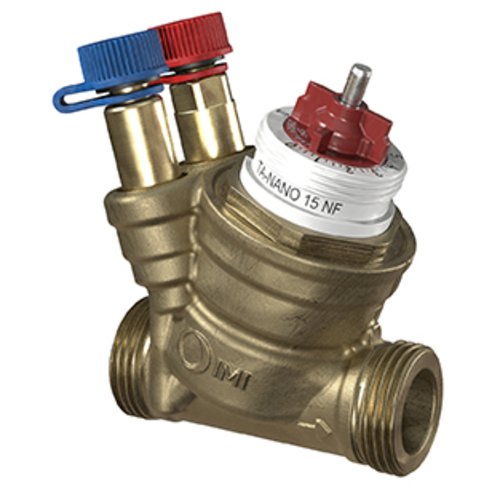

TA Control and Regulating Valve TA-Nano Plus AG, pressure independent, DN25 NF, with measuring nipples

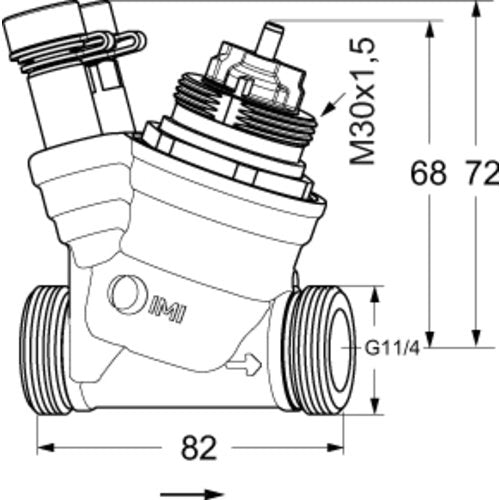

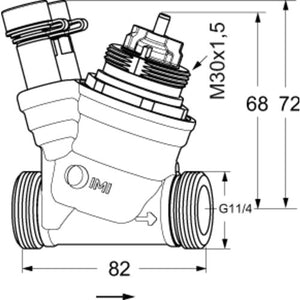

TA-Nano pressure-independent control and balancing valve for heating and cooling systems. Slim and compact design. With measuring points for measuring flow, temperature, and pressure drop. Measurement methods and diagnostics with balancing computers. Easy flow setting by hand. Setting the maximum flow prevents oversupply to small consumers. Valve presetting visible when the actuator is mounted, easy valve identification with color coding. Shut-off can be performed without tools. With flushing function. Tight closing (Class VI according to EN 60534-4). Access to all functions on the actuator side. Installation is possible in all mounting positions. Actuator connection M30x1.5. Valve stroke 4 mm. Linear control characteristic. Valve body made of corrosion-resistant, dezincification-resistant AMETAL-C, spindle made of stainless steel. The valve insert is made of AMETAL and the cone is made of PPS. Spindle sealing by O-ring made of EPDM. Spring made of stainless steel. Diaphragm made of EPDM. External thread according to ISO 228. The flow (q max) can be continuously adjusted from 220-2200 l/h within the specified range. Max. differential pressure 600 kPa. Min. differential pressure 25 kPa. Operating temperature from -10 deg. C. to +120 deg. C. Nominal pressure PN 25. Make: IMI TA, Type: TA-Nano Plus, with measuring points, Dimension: DN 25 NF, with external thread G 1 1/4, Part No. 32221310125
