Strawa strawi 125-25 Assembly Group FW0-180-SM
489,50 €
strawi 125-25 Assembly group FW0-180-SM
for a fixed value controlled heating circuit
consisting of:
two 1'' thermometer ball valves
(0-120 °C) in the flow withbackflow preventer,
three-way mixer 1'' Kvs 10.75
and fixed value actuator
setting range 25-45 °C.
24/230 V in the flow, adjustable
bypass in the mixer, additional
ball valve in the flow and return,
pump spacer 1 1/2'' x length 180 mm
in the flow for on-site
installation of a circulation pump,
piping made of stainless steel 1.4301 DN 25,
with EPP insulation according to EnEV
and cut-outs for manifold connections,
EPDM flat gaskets,
max. operating pressure: 6 bar
max. operating temperature: 100 °C
max. volumetric flow: 0.86 m³/h,
10 kW at delta T = 10 K
connection spacing: 125 mm

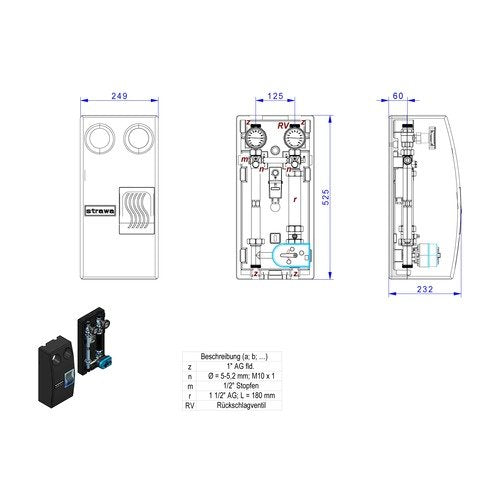

dimensions (WxHxD): 250 x 525 x 225 mm
primary side: 1'' male thread flat sealing
in the flow and return
secondary side: 1'' male thread flat sealing.
in the flow and return,
loose STB (safety
temperature limiter set to 55°C)
to prevent overtemperatures
in surface heating systems,
factory pressure tested and completely
packed in protective carton
recommended pumps:
Grundfos Alpha2 (L) 25-40,
Grundfos UPM3 Auto L 25-50,
Xylem Eco Floor 25-4/180
article no.: 7212001
make: s t r a w a
phone: 036256/8661-0 fax: -99
for a fixed value controlled heating circuit
consisting of:
two 1'' thermometer ball valves
(0-120 °C) in the flow with
three-way mixer 1'' Kvs 10.75
and fixed value actuator
setting range 25-45 °C.
24/230 V in the flow, adjustable
bypass in the mixer, additional
ball valve in the flow and return,
pump spacer 1 1/2'' x length 180 mm
in the flow for on-site
installation of a circulation pump,
piping made of stainless steel 1.4301 DN 25,
with EPP insulation according to EnEV
and cut-outs for manifold connections,
EPDM flat gaskets,
max. operating pressure: 6 bar
max. operating temperature: 100 °C
max. volumetric flow: 0.86 m³/h,
10 kW at delta T = 10 K
connection spacing: 125 mm
dimensions (WxHxD): 250 x 525 x 225 mm
primary side: 1'' male thread flat sealing
in the flow and return
secondary side: 1'' male thread flat sealing.
in the flow and return,
loose STB (safety
temperature limiter set to 55°C)
to prevent overtemperatures
in surface heating systems,
factory pressure tested and completely
packed in protective carton
recommended pumps:
Grundfos Alpha2 (L) 25-40,
Grundfos UPM3 Auto L 25-50,
Xylem Eco Floor 25-4/180
article no.: 7212001
make: s t r a w a
phone: 036256/8661-0 fax: -99
