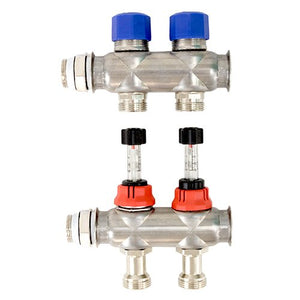

strawa FB extension circuit e-class 63 VA 3 circuits

Extension circuits – e-class 63
consisting of
Manifold bars:
made of stainless steel special profile (1.4301) DN 32,
with linearly arranged
heating circuit outlets,
Nozzle spacing 50 mm, all outlets with
3/4'' external thread with cone
in the flow and return manifold,
Flow manifold equipment:
visual shut-off and adjustment of the
heating circuits, via integrated shut-off
Regolux flow indicators 0-3 l/min
with memory function (Kvs=1.23 m³/h)
complies with DIN EN 1264-4
Return manifold equipment:
prepared for on-site installation of
electrothermal actuators (strawa
compliant) via integrated shut-off
thermostatic valve inserts made of stainless steel
(Kvs=2.56 m³/h),
max. operating pressure: 4 bar
max. operating temperature: 70 °C
max. volume flow: 2.14 m³/h
Secondary side:
3/4'' external thread with cone,
suitable for compression fittings,
Primary side:
3/4'' external thread self-sealing for connection
to the e-class manifold
factory pressure tested and
loosely packed in a protective carton

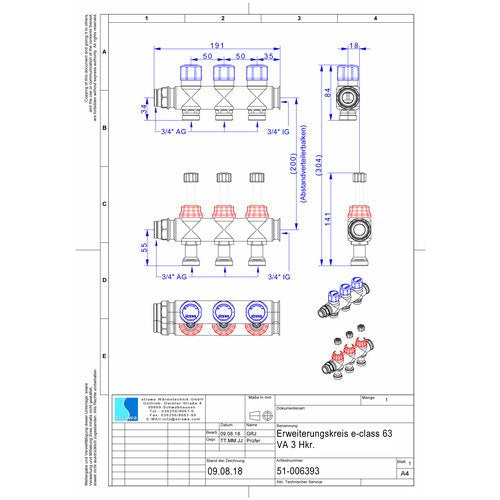

Extension circuit e-class 63 - 3 heating circuits.
Installation length 175 mm
Item no.: 51-006393
Brand: s t r a w a
Phone: 036256/8661-0 Fax: -99
