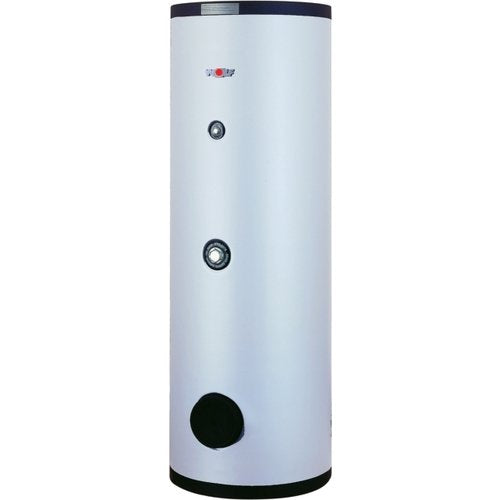

Unvented Cylinder SE-2-500, 500 liters enameled, silver, WOLF # 2444166

Unvented cylinder with a deep-set, firmly welded steel heating coil for short heating times.
Heating water max. 110° C and 12 bar.
Unvented cylinder made of steel ST 37-2 with quality certificate.
Domestic hot water side max. 95° C and 10 bar.
Corrosion protection through double-layer enamelling of the tank inner wall and heating coil.
Additional corrosion protection through magnesium protective anode, SE-2-750 with impressed current anode.
Top inspection and cleaning opening.
For SE-2-500 and SE-2-750 side flange
With removable soft foam insulation.
Technical data:
Energy efficiency class: C
Tank capacity: 485L
Performance index at NL60: 15
Standing heat loss: 2.70kWh/24h
Continuous storage output 53.0kW-1300l/h
with heating 80/60°C and domestic hot water 10/45°C
max. operating temperature: primary heating water: 110°C, secondary domestic hot water: 95°C
max. operating pressure: primary heating water: 10bar, secondary domestic hot water: 10bar
Heat exchanger surface: 2.0m²
Heat exchanger volume: 12.4L
Connections:
Cold/hot water 1
