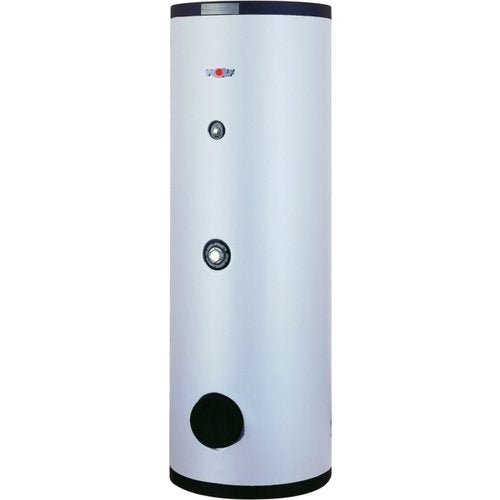

Unvented Cylinder SE-2-200, 200 Liter enamelled, silver, WOLF # 2444171

Unvented cylinder with a low-lying, permanently welded steel heating coil for short heating times.
Heating water max. 110°C and 12 bar.
Unvented cylinder made of ST 37-2 steel with quality certificate.
Domestic hot water side max. 95°C and 10 bar.
Corrosion protection through double-layer enameling of the tank interior and heating coil.
Additional corrosion protection through magnesium anode, SE-2-750 with impressed current anode.
Top-mounted inspection and cleaning opening.
Side flange for SE-2-500 and SE-2-750
With removable soft foam insulation.
Technical data:
Energy efficiency class: B
Storage volume: 195L
Performance index at NL60: 3.5
Standing heat loss: 1.36kWh/24h
Continuous storage output 28.0kW - 700l/h with heating 80/60°C and domestic hot water 10/45°C
Max. operating temperature: Primary heating water: 110°C, Secondary hot water: 95°C
Max. operating overpressure: Primary heating water: 10bar, Secondary hot water: 10bar
Heat exchanger surface area: 1.0m²
Heat exchanger volume: 6.2L
Connections:
Cold/hot water 1
