Art. no.
UA022W
SpiroVent air separator RV2 22mm IG, various installation positions, 10 bar, 110 degrees
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
124,83 €
Unavailable
Only a few left
7 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

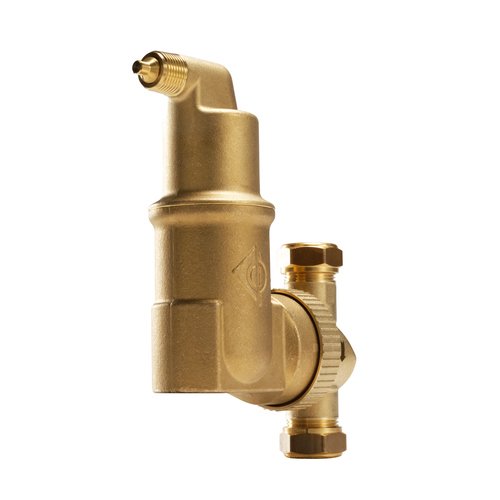

SpiroVent air separator RV2 22mm IG, various installation positions, 10 bar, 110 degrees
124,83 €
SpiroVent Microbubble Separator RV2
Brass version 22 mm
SpiroVent microbubble separator with
variable connection for vertical or
horizontal pipelines, for
continuous removal of air and
microbubbles from heating and
cooling circuits.
Medium water and water/glycol
(50/50%). Brass housing.
Degassing by the Spiro tube insert down
to a residual air content of 0.4 percent.
Venting with non-shut-off
permanent vent valve.
=== Manufacturer's warranty: 20 years ===
Technical data:
Nominal size: 22 mm
Pipe connection: Compression fitting
Housing: Brass
Installation length: 120 mm
Max. operating pressure: 10 bar
Max. flow temperature: 110 degrees C
Max. flow rate: 1.3 cbm/h
Max. flow velocity: 1.0 m/s
Max. pressure drop: 2.1 kPa
Capacity: 0.18 liters
Weight: 1.8 kg
Make: Spirotech bv
Type: SpiroVent RV2 22 mm
Item no.: UA022W
Proof of delivery:
Spirotech bv Telephone: (02 11) 3 84
28-0
In der Steele 2 Telefax: (02 11) 3
84 28-28
40599 Düsseldorf E-mail:
info@spirotech.de
Homepage: www.spirotech.de
