Solar power system storage tank FWSS 800 L incl. insulation, with heat exchanger

Freshwater System Storage 800 Liters
Buffer tank for domestic hot water
preparation and heating support,
installation of a heating circuit group
and a fresh water station
as well as the solar station possible,

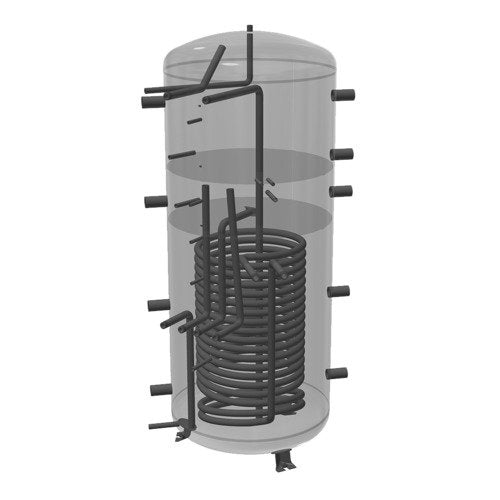

integrated smooth tube heat exchanger
with high transfer performance,
temperature stratification through
baffle plates and flow
calming devices.
Optimal thermal insulation including PU
soft foam rings for sealing
pipe penetrations,
automatic system venting,
high quality and long
service life.

Optionally plug-and-play mountable:
- Fresh water module FRESH20E/30E
or FRESH40HYDRO
- Heating circuit module HKGNTE or
HKGNTE/HTE
- Solar pump group SST25E
- Side-mounted storage tank BS

For all modules that can be mounted on the storage tank,
corresponding internal
pipework runs inside the buffer.

Volume: 800 l
Hot water zone: 240 l
Heating zone: 100 l
Height insulated: 1825 mm
Height uninsulated: 1755 mm
Diameter insulated: 1000 mm
Diameter uninsulated: 790 mm
Tilting dimension uninsulated: 1798 mm
Permissible operating pressure
Heating: 3 bar
Solar circuit: 10 bar
Permissible operating temperature
Heating: 95 °C
Solar circuit: 110 °C
Solar coil surface: 2.5 m2
Solar coil content: 14.6 l

Weight: approx. 160 kg
Soft foam insulation: 100 mm
Thermal conductivity of insulation:
0.041 W/(mK)

ErP - Label: 'C' - V:788 L - S: 135 W
