SH-Armaflex KT: 24m Type SH 9/89 for 88.9 + 3

Armacell SH/Armaflex Hoses
Insulation thickness: 9 mm - 11 mm
Insulation of pipes in
residential buildings up to ID 20mm
(without circulation/trace heating)
including bends etc. without special
requirements according to the Energy Saving
Ordinance.

To prevent cracking and
flow noises as well as
corrosion.
Insulation of cold water (drinking water)
pipes according to DIN 1988 Part 2 and 7.

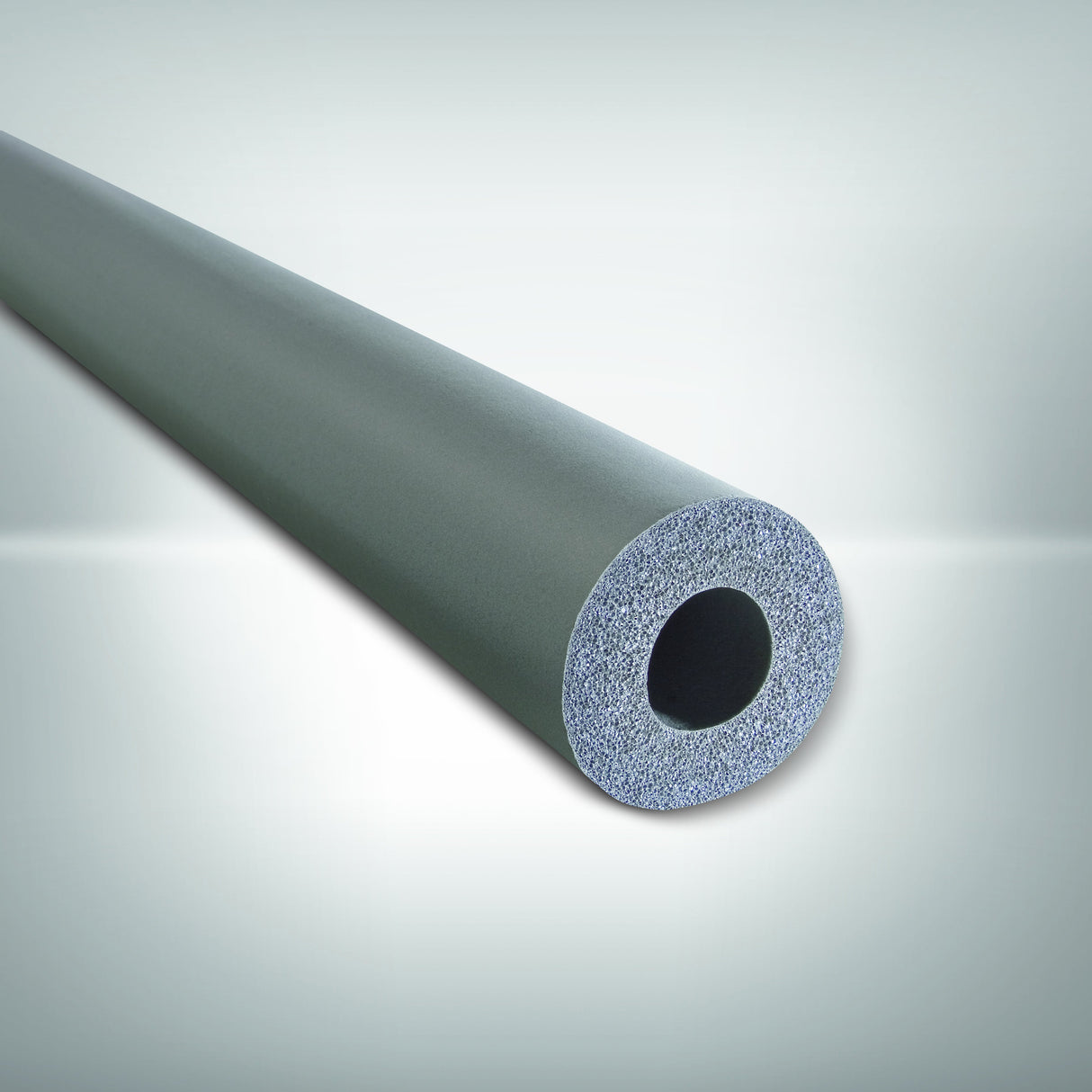

Flexible foam based on
synthetic rubber with
closed-cell material structure.
Color: gray.

Building material class: B(L)-s3,d0 according to
EN 13501-1 (up to IT 45 mm)

Quality monitoring according to EN ISO 13787 for
thermal conductivity and my-value.

All seams without self-adhesive closure
must be properly sealed with Armaflex adhesive 520.

Thermal conductivity
at 40 C average. 0.036 - 0.040 W/(m.K)
Upper application limit temp.: +110 C
