A AMF
Art. no. 94136

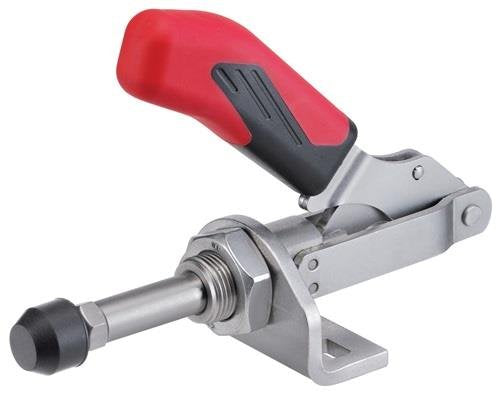

Push-Pull Clamp No. 6841 Size 3 small angle foot AMF

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
57,49 €
incl. VAT - Shipping calculated at checkout
In stock 11 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Push-Pull Clamp No. 6841 Size 3 small angle foot AMF
Push-Pull Clamp No. 6841 Size 3 small angle foot AMF
57,49 €

with small angle bracket · push-pull clamp · with long push rod guide · the clamp can be attached to sheet metal walls without an angle bracket or screwed into jig bodies with a front-end thread. Further technical features: · A: 12mm · D: 6.5mm · M max.: 42.5mm · M min.: 29.5mm · L2: 22mm · M2: M20x1.5mm · L1: 140mm · H1: 108mm · F1: 2.5kN · Total height: 110mm · B max.: 69mm · Bore Ø: 6.5 mm · F2: 2.5kN · B min.: 37mm · P: 30mm · K: 13mm · E: 30mm · H: 25mm · N: 60mm · Total length: 140mm Supplied with tempered, galvanized clamping screw No. 6880
