Art. no. 94110

Push Rod Clamp No. 6841 Size 1 Small Angle Base AMF

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
47,99 €
incl. VAT - Shipping calculated at checkout
Only a few left 5 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

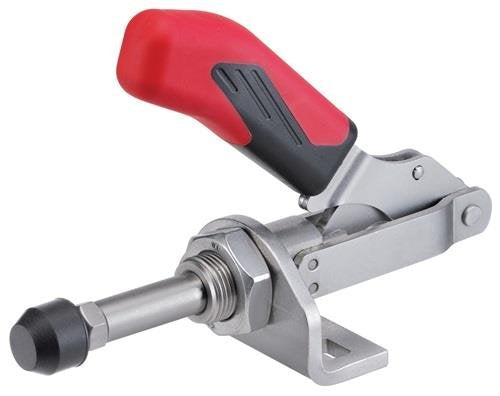

Push Rod Clamp No. 6841 Size 1 Small Angle Base AMF
Push Rod Clamp No. 6841 Size 1 Small Angle Base AMF
47,99 €

with small angled base · Push and pull clamp · with long push rod guide · The clamp can be mounted on sheet metal walls without an angled base or screwed into fixture bodies with a face-end thread. Further technical characteristics: · A: 8mm · D: 4.5mm · M max.: 19.5mm · M min.: 16mm · L2: 16mm · M2: M12x1.5mm · L1: 91mm · H1: 60.5mm · F1: 1kN · Total height: 60mm · B max.: 44.5mm · Bore-Ø: 4.5 mm · F2: 1kN · B min.: 24.5mm · P: 20mm · K: 7mm · E: 20mm · H: 15mm · N: 30mm · Total length: 91mm Supplied with tempered, galvanized clamping screw No. 6880
