S Schell
Art. no. 002330699

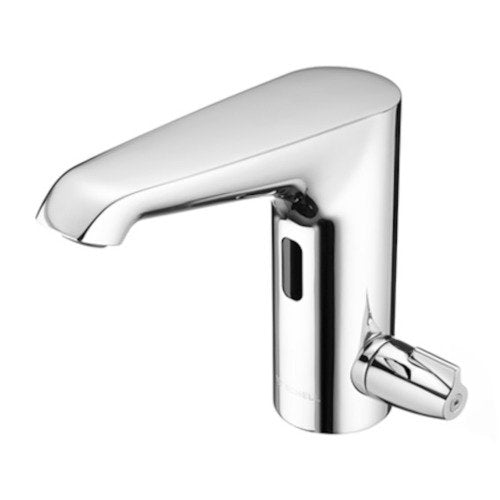

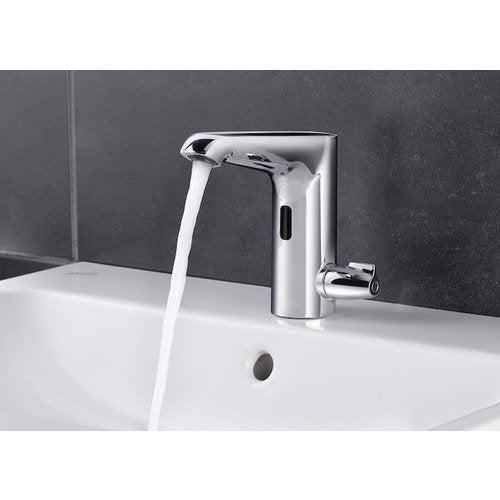

Schell Electronic Basin Tap XERIS E HD-K mid., Thermostat, Plug-in Power Supply

  • High-quality materials
  • Fast and secure shipping
  • Easy 30-day returns
  • Purchase on account: 120-day payment terms
Quantity/Size:
Unlock trade prices Exclusive to business customers Unlock
Only a few left 7 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

Electronic basin mixer XERIS E-T

HD-M mid. - High-pressure mixed water, thermostat

Infrared sensor-controlled. Mains operation (plug-in power supply unit). Suitable for networking with SCHELL Water Management System SWS. Parameterizable via SCHELL Single Control SSC.

Scope of delivery

  • Infrared sensor single-hole fitting
    • Thermostat according to EN 1111, temperature stop (factory setting 38 °C), scalding protection in case of cold water supply failure
    • Infrared sensor electronics, programmable
    • Axial solenoid valve 6 V with pre-filter
    • Aerator
    • Connection cable 220 mm, with 3-pin connector, protection class IP 65
  • Plug-in power supply unit 9 VDC, 100 - 240 VAC, 50 - 60 Hz
  • 2 flexible connection hoses Clean-Fix S G 3/8 IG x 400 mm, with integrated backflow preventer (RV, EN 1717: EB) and pre-filter
  • Fastening material for basin mounting

Technical data

  • Setting options via SWS/SSC
    • Programming via close-range reflection (off / on)
    • Sensor range (short / medium / long)
    • Max. run time (1 - 360 s)
    • Follow-up time (0.6 - 60 s)
    • Stagnation flush (off / 5 - 600 s, every 1 - 240 h after last flush / every 1 - 240 h)
    • Continuous flush for thermal disinfection, with scalding protection (off / 15 - 600 s)
    • Continuous flow (off / 15 - 600 s)
    • Energy-saving mode (off / 1 - 254 h after last use)
    • Cleaning stop (off / 60 - 360 s)
  • Setting options via close-range reflection
    • Sensor range (short / medium / long)
    • Stagnation flush (off / 30 s, every 24 h after last flush / every 24 h)
    • Continuous flush for thermal disinfection, with scalding protection (off / 300 s / 120 s)
    • Cleaning stop (off / 60 s)
  • Thermal disinfection: possible after unlocking the temperature stop
  • Flow rate: max. 5 l/min pressure-independent
  • Flow pressure: 1.0 - 5.0 bar
  • Max. static pressure: 8 bar
  • Max. operating temperature: 70 °C (80 °C for thermal disinfection)
  • Material: housing brass; water-bearing parts plastic
  • Surface: chrome
  • Connection: 2x G 3/8 IG
  • Certificates: P-IX 29073/IO, ACS, WELL public
  • Noise class: I
  • Flow class: O
