S&P Duct Fan VENT-125 NK DN125, Radial Impellers

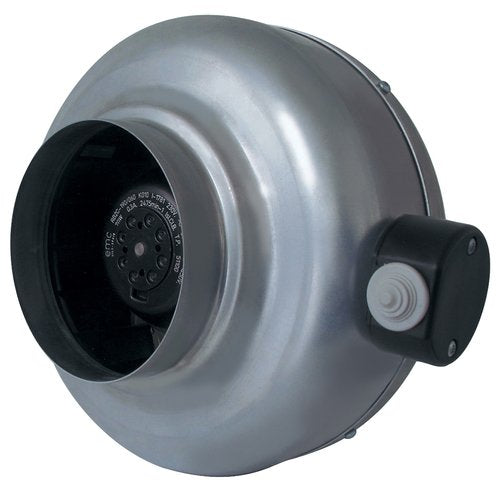

Radial in-line fan VENT-125 NK

-Radial design
-Casing made of galvanized sheet steel
-Impeller (backward curved) in metal-plastic composite design
-Complete with mounting bracket

-External rotor motor
-Protection class IP 44
-Thermal class B
-Motor rating continuous operation S1
-Sealed ball bearings (maintenance-free)
-Thermal overload protection according to EN 60335-2-80
-Separate terminal box (IP 55) with 80 cm connecting cable
-Transformer or electronically speed controllable


Technical data:

Volume flow: 390 m3/h
(free blowing)

Operating temperature: -20/60 °C

Nominal voltage: 1ph. 230 V/50/60Hz

Speed: 2,620 1/min

Max. power consumption: 60/80 W

Motor current: 0.3/0.3 A

Sound pressure level LPA 3m: 37 dB(A)
(casing radiation)

Weight: 3.0 kg

Manufacturer: S&P Deutschland GmbH
Type: VENT-125 NK
Item no.: 5145890000
