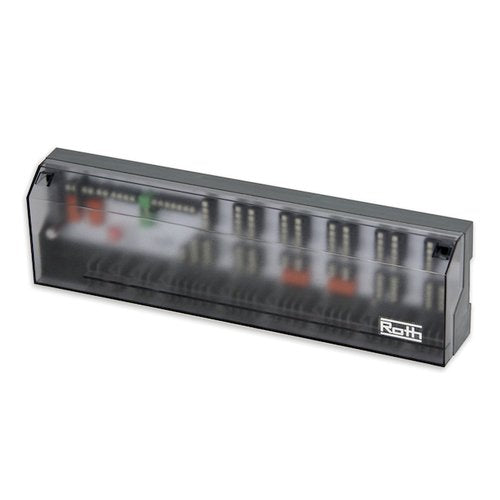

Roth Connection Module Basicline AM-10 230 Volt, Heating/Cooling

Premium connection unit for the safe and organized wiring of up to 10 Roth Basicline room thermostats including heating/cooling, and a maximum of 18 Roth actuators.
(Channels 1 to 10 for 5/2/2/1/1/1/1/2/2/4 actuators respectively.)
Connection unit available for 230 V or 24 V components.
To activate cooling mode, the C/O changeover contact on the Roth connection module must be closed via an external relay. The switching relay (230 V or 24 V, 1 NO contact)
is controlled, for example, by the Roth heat pump and must be planned per connection module in the distribution cabinet.
Features: LED indicators, optional input for Roth condensation monitor / humidity sensor, pump output with adjustable overrun time for demand-driven pump control, setback input for forwarding the setback signal when connecting a timer.
High-quality housing with standard-compliant strain relief. For mounting in the Roth
distribution cabinet on a DIN rail or screwed to the distribution cabinet rear panel.
Connection: 230 V
Packaging unit: 1 piece
Note: For the 24 V version, the Basicline transformer, material no. 1135007679, must also be ordered.
