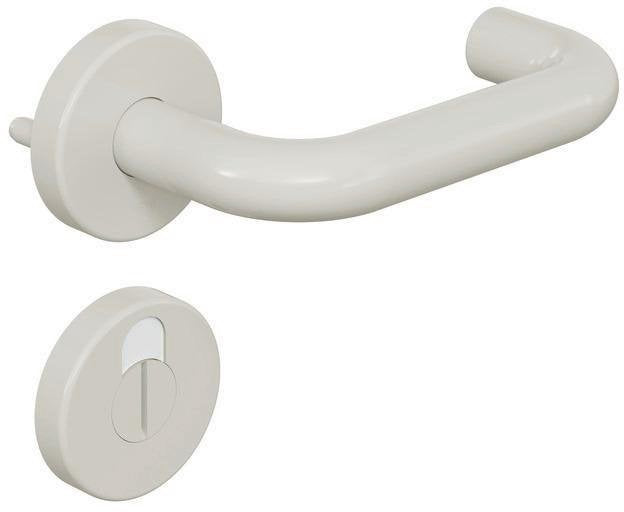

Rose handle plate.111R02.130 Knob.97 U-shape Dummy DIN L/R D/D HEWI

in R-Technique with roses according to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss finish, consisting of: U-shaped door handle made of polyamide with a continuous steel core extending into the end of the handle, continuously colored, diameter 20 mm, with shoulder guide and snap-in groove, assembly by simply snapping the door handles into the sub-assemblies pre-mounted on the door. The latching can be released again using a dismantling key. The handle meets the requirements of DIN EN 179 and DIN 18040. Rose substructure made of plastic-stainless steel composite, usable for DIN left and DIN right. Firmly rotatable bearing of the handles with automatically engaging all-round locking and 5 mm bearing point as a maintenance-free plain bearing with elastic compensation area and second bearing point in the handle neck. Concealed, loosening-resistant screw connection with M4 screw and sleeve screw combination as well as support pins. Rose cover cap, round, made of polyamide, continuously colored, diameter 55 mm, 13 mm high, curved, 1.5 mm wall thickness. Designed and tested for commercial use, usage category according to DIN EN 1906 - class 4 set with 8 mm square spindle · handle length 138 mm · handle set. Further technical characteristics: · Cam distance: 38mm · Mounting system: R-Technique
