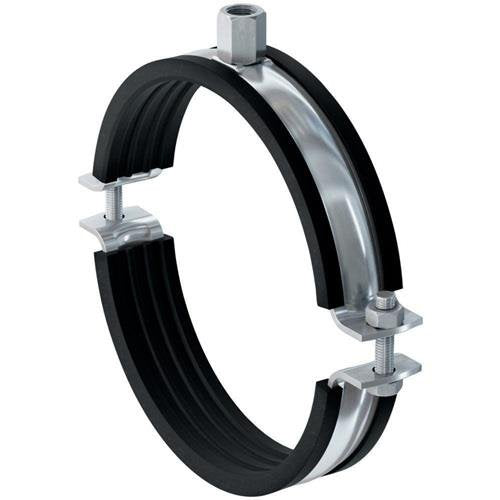

Pipe clamp FRSM 53-58 M10/M12 hot-dip galvanized steel FISCHER

The fischer heavy-duty pipe clamp FRSM - metric is a two-screw pipe clamp made of electro-galvanized or hot-dip galvanized steel of material grade DD11 with combination connection threads M 8/M 10 or M 12/M 16. The two-screw design allows for optimized adaptation to the pipe's outer diameter. Together with the combination connection thread, this increases flexibility. This allows pipes with an outer diameter of 19 - 508 mm to be securely fastened indoors with a threaded rod or hanger bolt. The pipe clamp, with a chlorine-free and silicone-free sound insulation insert, complies with the requirements of DIN 4109. The fischer FRSM - metric is suitable for applications in a temperature range of -50 °C to +110 °C. Marketing Claim: The heavy-duty pipe clamp with sound insulation insert for medium to high loads. Advantages: High tested loads guarantee the reliable function of the FRSM. The connection nut with combination thread M10/M12 · M12/M16 or M16 enables optimized inventory management. The perforated clamp band allows for fastening with 2 threaded rods from Ø 124mm, e.g., for fastening cast iron roof drainage pipes. The two-screw design allows for optimized adaptation to the pipe's outer diameter. The loss-prevention feature of the screws ensures problem-free assembly. The surface coating provides high corrosion protection. Not suitable for use in chloride-containing environments. Top Features: Two-screw design for optimized adaptation to pipe outer diameter. Loss-prevention screw. Connection nut with combination thread. Sound insulation insert. Further technical properties: · Connection thread: M10 / M12 · Clamp band width: 25mm · Clamp band width x thickness: 25 x 2.5mm · Installation torque: 2Nm · Professional / DIY: Professional · Clamping range: 53 - 58mm · Clamping range from - to: 53mm · Clamp band thickness: 2.5mm · Max. recommended static load (central tensile): 2.5kN
