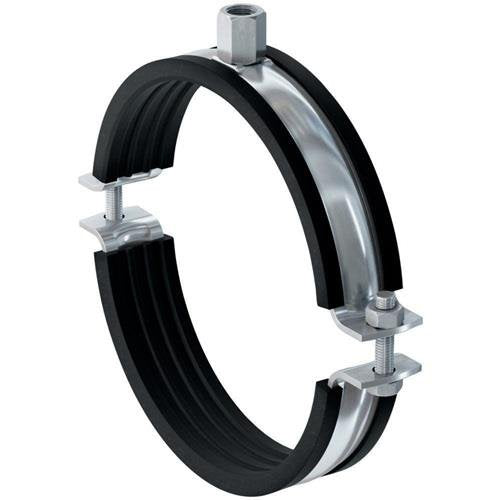

Pipe clamp FRSM 300 M12/M16 hot-dip galvanized steel FISCHER

The fischer pipe clamp for solid pipes FRSM - metric is a two-screw pipe clamp made of electro-galvanized or hot-dip galvanized steel of material grade DD11 with combined connection threads M 8/M 10 or M 12/M 16. The two-screw design allows for optimized adaptation to the pipe's outer diameter. Together with the combined connection thread, this increases flexibility. This enables pipes with an outer diameter of 19 - 508 mm to be securely fastened indoors with a threaded rod or hanger bolt. The pipe clamp, with a chlorine- and silicone-free sound insulation insert, meets the requirements of DIN 4109. The fischer FRSM - metric is suitable for applications in a temperature range from -50 °C to +110 °C. Marketing Claim: The robust pipe clamp with sound insulation insert for medium to high loads. Advantages: High tested loads guarantee the reliable function of the FRSM. The connection nut with combined thread M10/M12 · M12/M16 or M16 enables optimized inventory management. The perforated clamp band allows for fastening with 2 threaded rods from Ø 124mm, e.g., for fastening cast roof drainage pipes. The two-screw design allows for optimized adaptation to the pipe's outer diameter. The loss prevention feature of the screws ensures problem-free assembly. The surface coating provides high corrosion protection. Not suitable for use in chloride-containing environments. Top Features: Two-screw design for optimized adaptation to the pipe's outer diameter. Screw loss prevention. Connection nut with combined thread. Sound insulation insert. Further technical characteristics: · Connection thread: M12 / M16 · Clamp band width: 40mm · Clamp band width x thickness: 40 x 4.0mm · Installation torque: 10Nm · Professional / DIY: Professional · Clamping range: 297 - 304mm · Clamping range from - to: 297mm · Clamp band thickness: 4mm · Max. recommended static load (central tensile): 5kN
