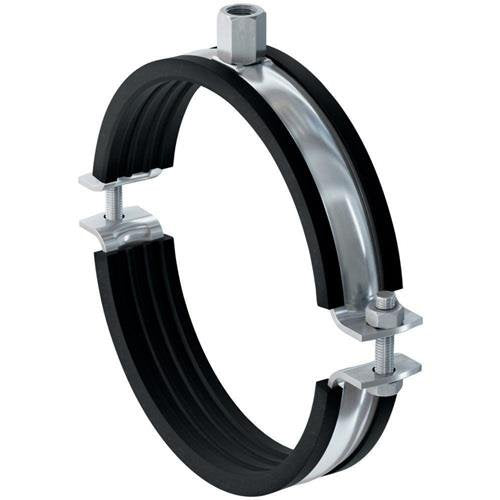

Pipe clamp FRSM 2 inch M10/M12 hot-dip galvanized steel FISCHER

The fischer FRSM - metric heavy-duty pipe clamp is a two-screw pipe clamp made of electro-galvanized or hot-dip galvanized DD11 steel with combination connecting threads M 8/M 10 or M 12/M 16. The two-screw design allows for optimized adjustment to the pipe's outer diameter. Together with the combination connecting thread, this increases flexibility. This allows pipes with an outer diameter of 19 - 508 mm to be securely fastened indoors with a threaded rod or hanger bolt. With a chlorine- and silicone-free sound insulation insert, the pipe clamp complies with the requirements of DIN 4109. The fischer FRSM - metric is suitable for applications in a temperature range from -50 °C to +110 °C. Marketing Claim: The heavy-duty pipe clamp with sound insulation insert for medium to high loads. Advantages: High tested loads guarantee the reliable function of the FRSM. The connecting nut with combination thread M10/M12 · M12/M16 or M16 enables optimized stock keeping. The perforated clamp band allows fastening with 2 threaded rods from Ø 124mm, e.g. for fastening cast-iron roof drainage pipes. The two-screw design allows for optimized adjustment to the pipe's outer diameter. The loss protection of the screws ensures problem-free assembly. The surface coating provides high corrosion protection. Not suitable for use in chloride-containing environments. Top Features: Two-screw design for optimized adjustment to the pipe's outer diameter. Loss protection of the screw. Connecting nut with combination thread. Sound insulation insert. Further technical properties: · Connecting thread: M10 / M12 · Clamp band width: 25mm · Clamp band width x thickness: 25 x 2.5mm · Installation torque: 2Nm · Nominal size: 2inch · Professional / DIY: Professional · Clamping range: 60 - 65mm · Clamping range from - to: 60mm · Clamp band thickness: 2.5mm · Max. recommended static load (central tensile): 2.5kN
