Pipe clamp FRS Clamping range 40-45 M8/M10 hot-dip galvanized steel FISCHER

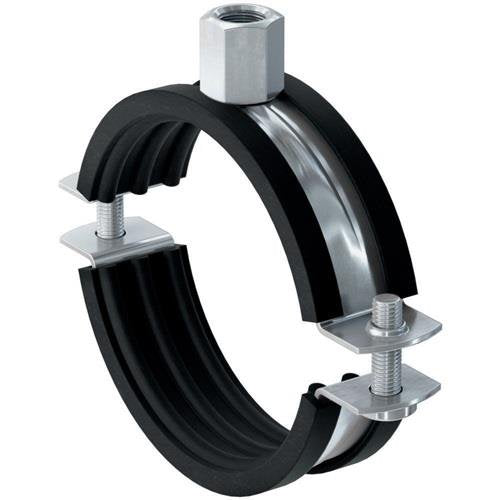

The fischer pipe clamp FRS zl is a two-screw pipe clamp made of zinc flake-coated steel, material grade DC01, with a combined connection thread M8/M10. The two-screw design allows for optimized adaptation to the pipe's outer diameter. Together with the combined connection thread, this increases flexibility. This enables pipes with an outer diameter of 12 - 168 mm to be securely fastened indoors with threaded rods or stud screws, in accordance with the fire protection requirements of fire resistance class R 120 and the MLAR guidelines. The pipe clamp, with a chlorine- and silicone-free sound insulation insert, complies with the requirements of DIN 4109. The fischer FRS zl is suitable for applications in a temperature range from -40 °C to +100 °C. Marketing Claim: FRS zl pipe clamp with high corrosion protection Advantages: The fire test report guarantees objectively tested functional safety. The two-screw design allows for optimized adaptation to the pipe's outer diameter. The connecting nut with combined M8 / M10 thread ensures flexibility on the construction site. The sound insulation insert provides sound reduction and prevents contact corrosion. The captive screws ensure easy installation. Top Features: The fire test report guarantees objectively tested functional safety. The two-screw design allows for optimized adaptation to the pipe's outer diameter. The connecting nut with combined M8/M10 thread ensures flexibility on the construction site. Further technical characteristics: · Connection thread: M8 / M10 · Connecting nut: resistance welded, M8 / M10, SW 17, h = 21 mm · Fire behavior: DIN 4102: Class B2 · Clamp band width: 20mm · Clamp band width x thickness: 20 x 1.25mm · Installation torque: 2Nm · Nominal size: 1 1/4 inch · Professional / DIY: Professional · Clamping range: 40 - 45mm · Clamping range from - to: 40mm · Clamp band thickness: 1.25mm · VDS approval: Yes · Max. recommended static load (centr. tension): 1kN
