Pipe Clamp FRS Clamping Range 20-24 M8/M10 Hot-Dip Galvanized Steel FISCHER

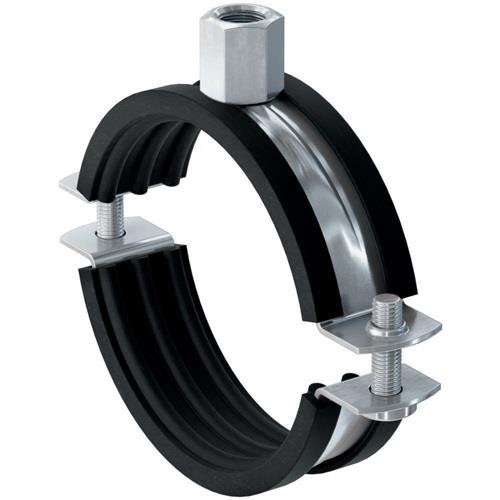

The fischer FRS zl pipe clamp is a two-screw pipe clamp made of zinc flake-coated steel of material grade DC01 with an M8/M10 combination connection thread. The two-screw design allows for optimized adaptation to the outer pipe diameter. Together with the combination connection thread, this increases flexibility. This allows pipelines with an outer diameter of 12 - 168 mm to be securely fastened indoors with threaded rods or hanger bolts in accordance with the fire protection requirements of fire resistance class R 120 and MLAR. With a chlorine- and silicone-free sound insulation insert, the pipe clamp complies with the requirements of DIN 4109. The fischer FRS zl is suitable for applications in a temperature range of -40 °C to +100 °C. Marketing Claim: FRS zl pipe clamp with high corrosion protection Advantages: The fire test report guarantees objectively tested functional safety. The two-screw design allows for optimized adaptation to the outer pipe diameter. The connection nut with M8 / M10 combination thread ensures flexibility on the construction site. The sound insulation insert provides sound reduction and prevents contact corrosion. The captive screws ensure easy installation. Top Features: The fire test report guarantees objectively tested functional safety. The two-screw design allows for optimized adaptation to the outer pipe diameter. The connection nut with M8/M10 combination thread ensures flexibility on the construction site. Further technical properties: · Connection thread: M8 / M10 · Connection nut: resistance-welded, M8 / M10, SW 17, h = 21 mm · Fire behavior: DIN 4102: Class B2 · Clamp band width: 20mm · Clamp band width x thickness: 20 x 1.25mm · Installation torque: 2Nm · Nominal size: 1/2 inch · Professional / DIY: Professional · Clamping range: 20 - 24mm · Clamping range from - to: 20mm · Clamp band thickness: 1.25mm · VDS approval: Yes · Max. recommended static load (centr. tension): 1kN
