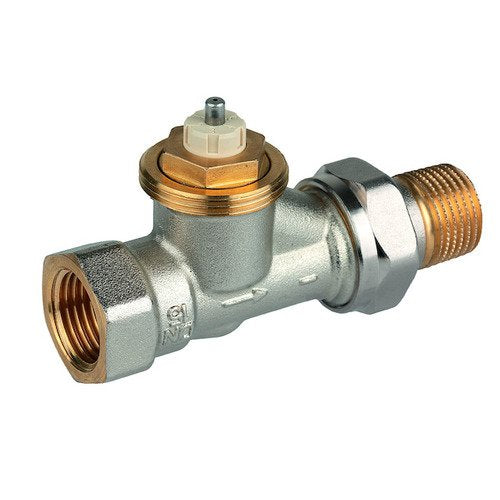

Resideo Thermostatic Radiator Valve Body SX Brass Nickel-Plated, Straight, 3/4

Resideo Thermostatic Radiator Valve Body SX
The V2000SX is a series of thermostatic valves that feature a wide range for presetting flow rates to balance heating systems. This allows the V2000SX to be used as a universal valve in two-pipe heating and cooling systems with pump operation.
V2000SX valves operate quietly in both standard and reverse flow directions. It is recommended to connect them preferably to the radiator's supply pipe. Alternatively, the valves can also be installed on the radiator's return pipe.
The V2000SX series covers a wide range of dimensions, variants, and connections, thus offering a solution for almost all installation situations in new construction, renovation, and retrofitting projects.

Features
• Thermostatic threaded connection M30 x 1.5

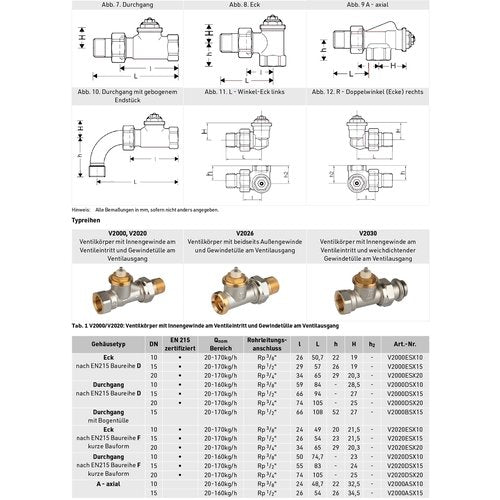

• Standard dimensions according to EN215, supplemented with a comprehensive range of variants and connection threads
• Quiet operation, even in reverse flow direction
• Double O-ring seal on the spindle for maintenance-free operation
• Strong, non-medium-contacting return spring, ensuring the longevity of the valve
• Wide flow range
• Flow limited to max. 130% of the nominal flow to prevent hydraulic balancing imbalance when heating a cooled-down room
• Increased flow rates with high-stroke thermostatic head T3019HF
• Easily adjustable with an adjustment key (see accessories)
• The valves can be shut off with the protective cap
• The valves can be equipped with the following actuators: All radiator thermostats with M30 x 1.5 connection thread, HR types of Evohome and Roomtronic actuators, MT4 actuators, M5410 2-point actuators, M4410E/K and M7410E5001 modulating actuators.
• The valve insert can be replaced during operation and without draining the system using the assembly tool (see accessories)
• Valve body and insert are compatible with AT-Concept. This ensures the compatibility of body and insert with MNG, Honeywell, and Honeywell Home thermostatic valves since 1974.
Connection size: 3/4 inch
Design: Straight
Kvs value: 0.7
Flow rate: 20 l/h - 170 l/h
Adjustable: Yes
Pressure independent: No
Medium: Water or water-glycol mixture according to VDI 2035
Max. medium temperature: 120 °C
Max. operating pressure: 10 bar
Max. differential pressure: 100 kPa
Housing material: Nickel-plated brass
Thermostat connection: M30 x 1.5
Color of adjustment ring: beige
Brand: Resideo
Type: Honeywell Home
