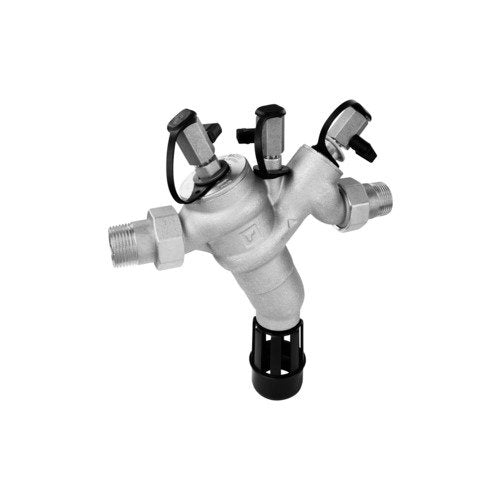

Resideo backflow preventer BA295S-LF, type BA, lead-free brass, R 1

Resideo Backflow Preventer BA295S-LF
Backflow preventers of this type are suitable for protecting potable water systems from back pressure, backflow, and back-siphonage. They can be used for residential, industrial, and commercial purposes, taking into account their specifications. Liquids up to and including fluid category 4 according to DIN EN 1717 are protected. Maintainable fitting according to DIN EN 806-5.

Features:
All three pressure zones are equipped with a test cock for the mandatory annual inspection.
Optimal protection of the potable water supply system.
Integrated strainer on the inlet side.
Inlet-side backflow preventer and drain valve are combined in a single cartridge.
All materials are lead-free with a lead content of less than 0.1%.
Low maintenance – cartridge insert and valve insert are completely replaceable.
Dead-space-free housing.
Compact design.
Effortless access to all internal components.
Low pressure loss and high flow rate.
Complies with RoHS and REACH requirements.
ACS certified.
All materials conform to KTW.
Approved as low-noise by TÜV LGA, Group 1 without restrictions.
Medium: Potable water
Housing material: Brass, lead-free
Nominal diameter: 1 inch
Nominal pressure: PN 10
Protection class: BA
Max. medium temperature: 65 °C
Kvs value: 5.8
Fluid category (DIN EN 1717): 4
Note: Identical in construction to former Honeywell article
Make: Resideo
Type: Braukmann
