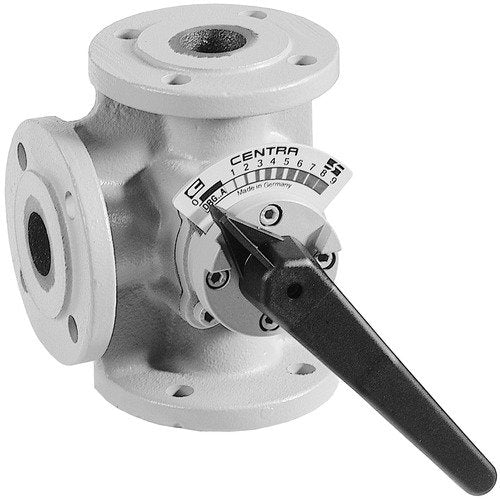

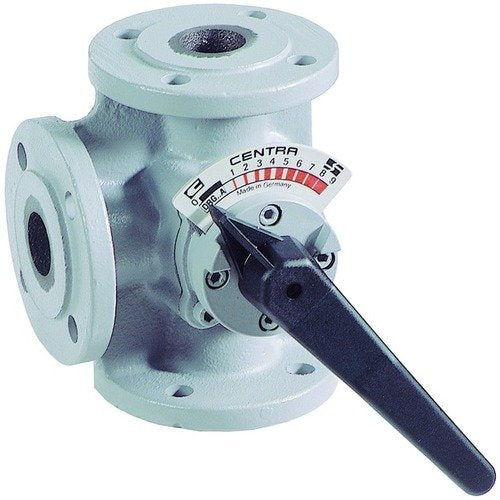

Resideo Three-Way Flanged Mixer DR GG 20, grey, PN6, straight DN25
193,58 €
Resideo Three-Way Flanged Mixer DR
with straight-through flow, Robust housing made of high-quality gray cast iron GG 20. Chromium-plated, special grease-treated mixer plug (DBP and foreign patents). Double O-ring seal. Return connection left or right.
Series: DRG
Nominal pressure: PN 6
Connections: Flange
Housing material: Cast iron GG20
Medium: Water, with max. 50% glycol according to VDI 2035
Medium temperature: 2 °C - 130 °C
Control characteristic: equal percentage/linear
Nominal size: DN 25
Kvs value: 10
Kvs value leakage: 1%
Design: Flange design
Note: Identical in construction to former Honeywell article
Make: Resideo
Type: Centra
with straight-through flow, Robust housing made of high-quality gray cast iron GG 20. Chromium-plated, special grease-treated mixer plug (DBP and foreign patents). Double O-ring seal. Return connection left or right.
Series: DRG
Nominal pressure: PN 6
Connections: Flange
Housing material: Cast iron GG20
Medium: Water, with max. 50% glycol according to VDI 2035
Medium temperature: 2 °C - 130 °C
Control characteristic: equal percentage/linear
Nominal size: DN 25
Kvs value: 10
Kvs value leakage: 1%
Design: Flange design
Note: Identical in construction to former Honeywell article
Make: Resideo
Type: Centra
