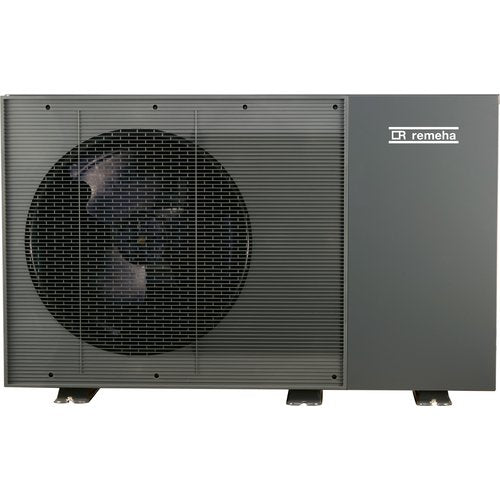

RE High-Temperature Heat Pump Confida MB 400-12

RE Confida MB 400-12 single-stage high-temperature air/water heat pump in monobloc design for year-round maximum efficiency for existing buildings or new builds in monoenergetic, monovalent or hybrid design for outdoor installation Compatible with all Confida indoor units Maximum flow temperature: 75 °C Number of refrigeration circuits/compressors: 1 Compressor type: rotary compressor Colour: RAL 7016 Can be used for: heating mode, cooling mode, hot water preparation fast installation and easy maintenance due to factory pre-installation of the safety devices required for operation Performance data (A7/W35): nominal heating capacity: 11.5 kW Coefficient of performance (COP): 4.9 Modulation range: 5.87 - 14.72 kW Performance data (A-7/W35): nominal heating capacity: 9.9 kW Coefficient of performance (COP): 2.8 Modulation range: 5.25 - 11.93 kW Performance data (A7/W55): nominal heating capacity: 11.5 kW Coefficient of performance (COP): 3.2 Modulation range: 9.75 - 13.61 kW Performance data (A-7/W55): nominal heating capacity: 10.3 kW Coefficient of performance (COP): 2.2 Modulation range: 6.53 - 11.35 kW Performance data (A35/W18): nominal cooling capacity: 11.9 kW Energy efficiency ratio (EER): 4.5 Modulation range: 6.08 - 16.40 kW ErP data (low temp. application) Prated: 12.1 kW Pdh in part-load condition A: 10.7 kW ETA S: 189% SCOP: 4.8 Efficiency class: A+++ ErP data (medium temp. application) Prated: 12.1 kW Pdh in part-load condition A: 11.9 kW ETA S: 148% SCOP: 3.8 Efficiency class: A++ Sound power level ErP: 52 dB(A) max. sound power level: 62 dB(A) Flow temperature min./max. in heating mode: 25 °C / 75 °C Outdoor air temperature min./max. in heating mode: -25 °C / +35 °C Flow temperature min./max. in cooling mode: 5 °C / 25 °C Outdoor air temperature min./max. in cooling mode: -5 °C / +46 °C Flow temperature min./max. in hot water mode: 25 °C / 75 °C Outdoor air temperature min./max. in hot water mode: -25 °C / +46 °C Min. water pressure: 1 bar Max. water pressure: 3 bar Dimensions HxWxD: 872 x 1390 x 523 mm Empty weight: 142 kg Connection size flow/return: 1 1/4 Power supply 400 V/ three-phase / 50HZ max. current consumption: 3x 11 A electrical power consumption in operation: 5.7 kW Refrigerant: R290 Refrigerant quantity: 1.25 kg GWP: 3 CO2 equivalent: 3.8 kg, Article number: 7887212
